INTRAHEAL THE INTRAMEDULLARY NAILING SYSTEM

Proximal Hip Nail 11mm x 180mm

Specifications:

Proximal Hip Nail 11mm x 180mm (US FDA 510k Approved)

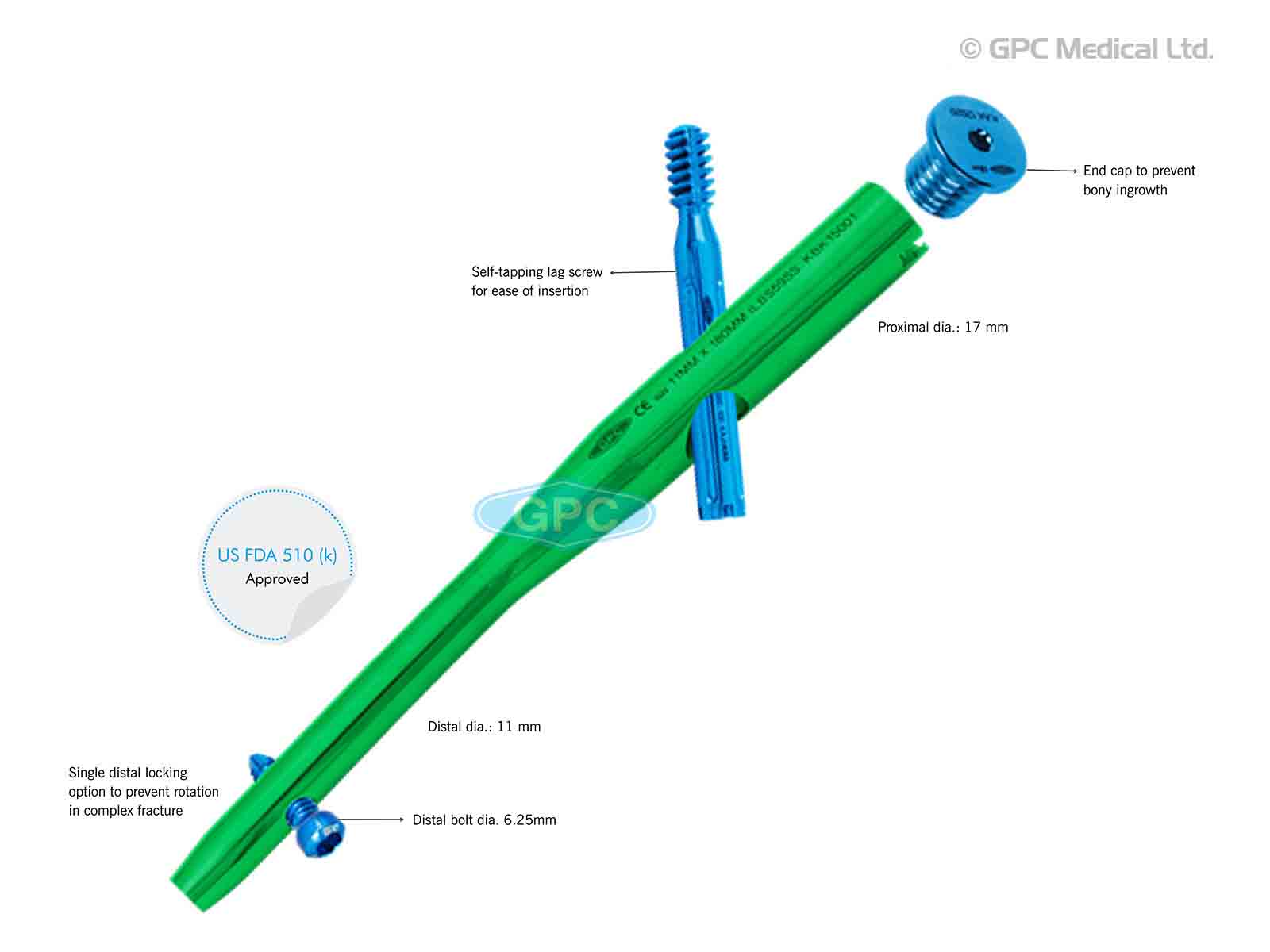

  • Superior biomechanical intramedullary stabilization
  • Cannulated nail for guide wire controlled insertion
  • Set screw to inhibit rotation of the proximal lag screw & simultaneously allowing sliding of the lag screw
  • Nail dia: 17 mm proximal & 11 mm distal
  • Range of angles: 125°, 130°, 135°
  • Single distal locking option to prevent rotation in complen fracture
  • In stable fractures, it provides circumferential compression at the fracture site and transferring axial load to the bone
  • Nail length available: 180mm, 200mm, 220mm
  • Self-tapping lag screw for easy insertion

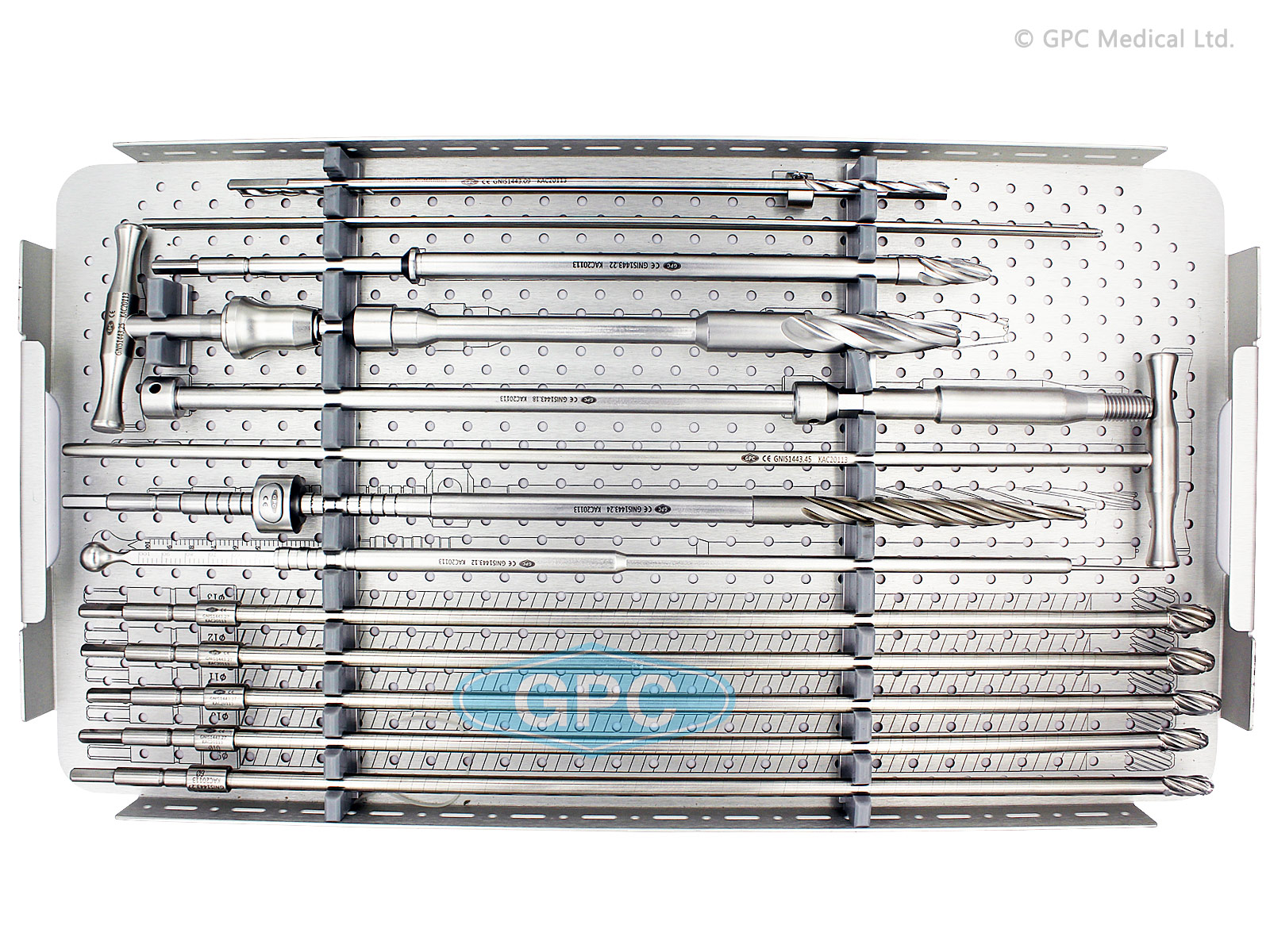

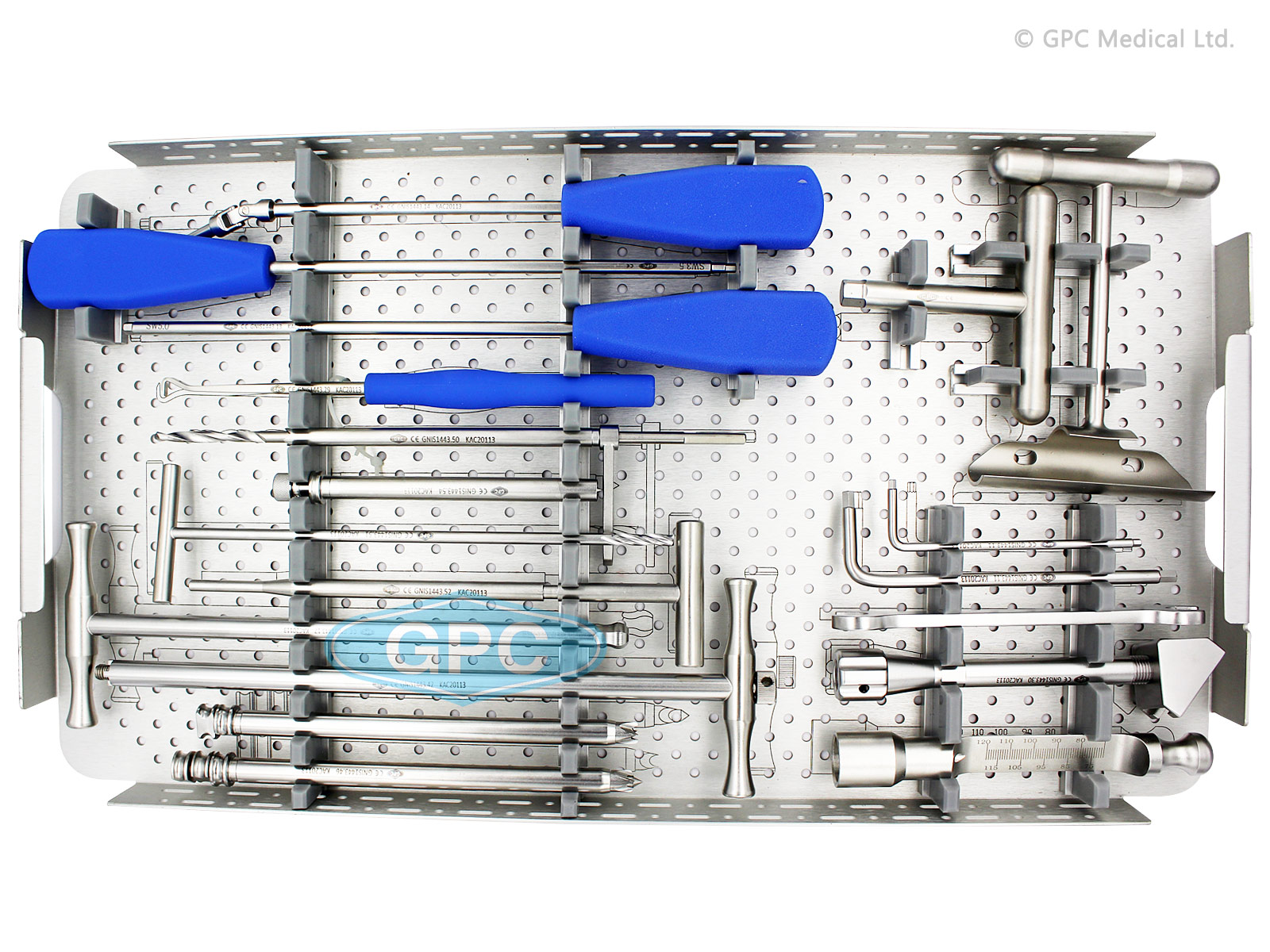

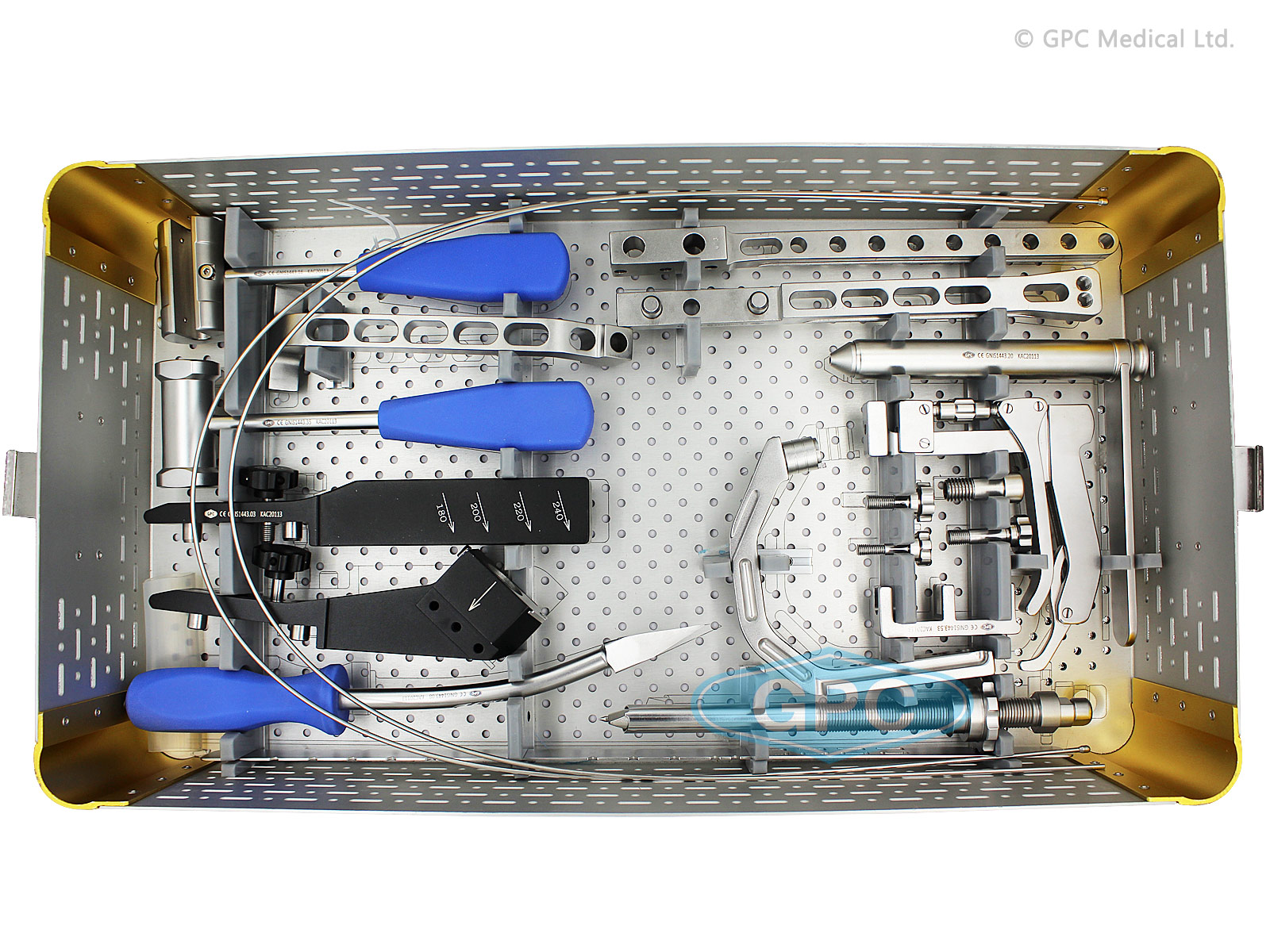

  • Single targeting device for proximal & distal locking
  • Universal nail for right & left hip
  • Available in both titanium and stainless steel
