INTRAHEAL INTRAMEDULLARY NAILING SYSTEM

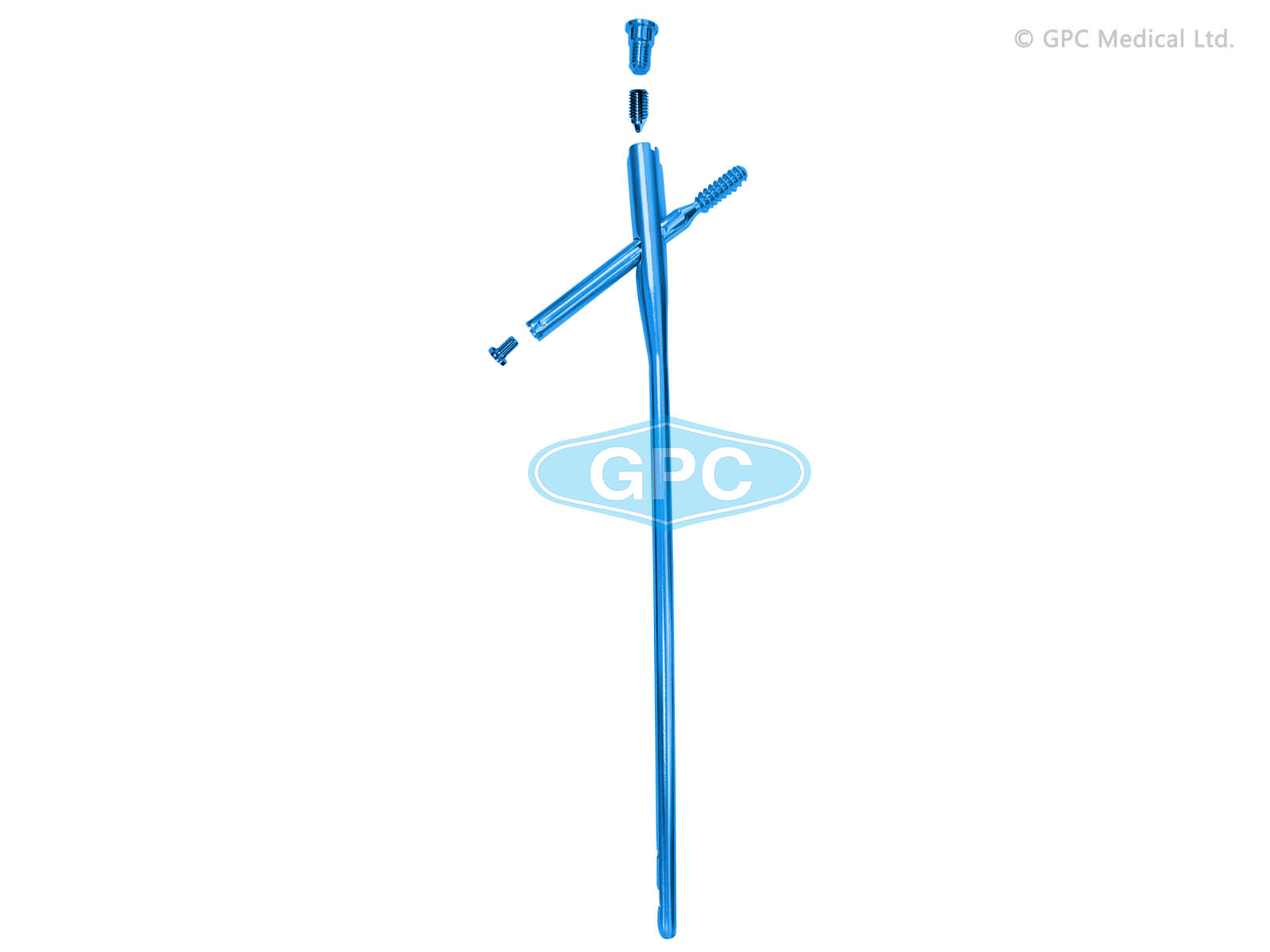

intraHEAL Proximal Hip Stabilizing Nail 3

Specifications:

Features:
  • The proximal diameter is 15.5 mm, to minimize the incision length required for minimally invasive surgery
  • Comes in three neck angles- 120, 125, 130 degrees to accommodate various anatomies
  • Cannulated nail for guide wired controlled insertion
  • The thread design of the lag screw enables superior cut out strength from the cancellous bone
  • Short nail has one distal locking screw & the long nail has two

Stainless Steel Titanium. Length
PHN3.120 PHN3.120 120°
    Dia. 10 mm
PHN3.120.10.18 PHN3.120.10.18T  180 mm Length
PHN3.120.10.20 PHN3.120.10.20T 200 mm Length
PHN3.120.10.22 PHN3.120.10.22T 220 mm Length
    Dia. 11 mm
PHN3.120.11.18 PHN3.120.11.18T 180 mm Length
PHN3.120.11.20 PHN3.120.11.20T 200 mm Length
PHN3.120.11.22 PHN3.120.11.22T 220 mm Length



PHN3.125 PHN3.125 125°
    Dia. 10 mm
PHN3.125.10.18 PHN3.125.10.18T  180 mm Length
PHN3.125.10.20 PHN3.125.10.20T 200 mm Length
PHN3.125.10.22 PHN3.125.10.22T 220 mm Length
    Dia. 11 mm
PHN3.125.11.18 PHN3.125.11.18T 180 mm Length
PHN3.125.11.20 PHN3.125.11.20T 200 mm Length
PHN3.125.11.22 PHN3.125.11.22T 220 mm Length

PHN3.130 PHN3.130 130°
    Dia. 10 mm
PHN3.130.10.18 PHN3.130.10.18T 180 mm Length
PHN3.130.10.20 PHN3.130.10.20T 200 mm Length
PHN3.130.10.22 PHN3.130.10.22T 220 mm Length
    Dia. 11 mm
PHN3.130.11.18 PHN3.130.11.18T 180 mm Length
PHN3.130.11.20 PHN3.130.11.20T 200 mm Length
PHN3.130.11.22 PHN3.130.11.22T 220 mm Length
