INTRAHEAL THE INTRAMEDULLARY NAILING SYSTEM

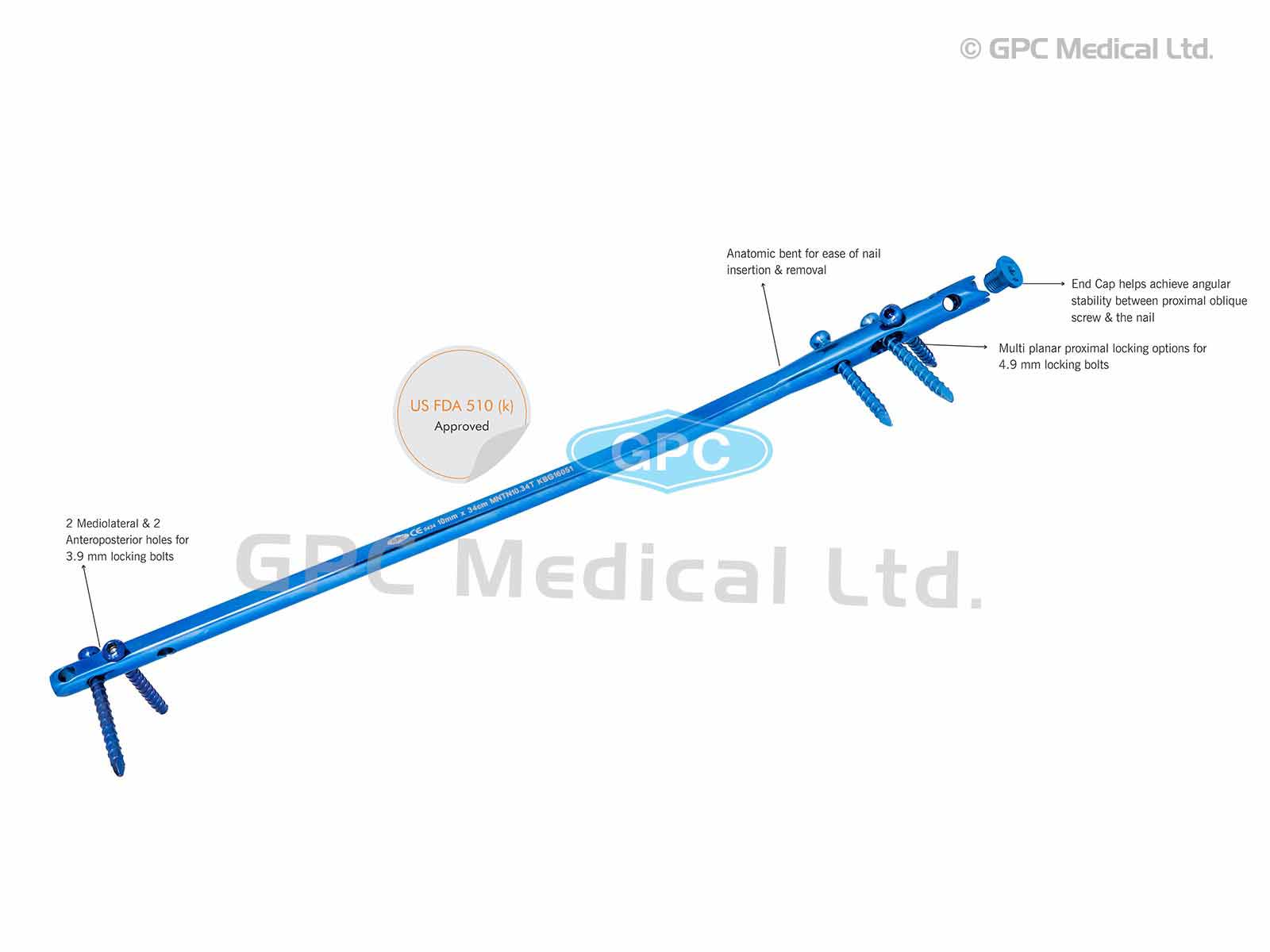

Multiangle Locking Tibia Nail

Specifications:

Multiangle Locking Tibia Nail (US FDA 510k Approved)

  • Multiple locking options
  • Multiplanar proximal locking options in the proximal segment confers rotational stability & strength to the construct
  • Biplanar distal locking options provide rotational stability
  • End cap helps achieve angular stability between proximal oblique screw & the nail
  • Anatomic bent for ease of nail insertion
  • Single nail for proximal, shaft & distal fractures
  • Universal nail for right & left tibia
  • Available in both titanium & stainless steel
Sizes Available

  Length    (cm)

                                Code for Dia. (mm)  S.S.

                         Code for Dia. (mm)  Ti

    08

   09

  10

  08

  09

  10

  26

  MLTN08.26

  MLTN09.26

  MLTN10.26

  MLTN08.26T

  MLTN09.26T

  MLTN10.26T

  28

  MLTN08.28

  MLTN09.28

  MLTN10.28

  MLTN08.28T

  MLTN09.28T

  MLTN10.28T

  30

  MLTN08.30

  MLTN09.30

  MLTN10.30

  MLTN08.30T

  MLTN09.30T

  MLTN10.30T

  32

  MLTN08.32

  MLTN09.32

  MLTN10.32

  MLTN08.32T

  MLTN09.32T

  MLTN10.32T

  34

  MLTN08.34

  MLTN09.34

  MLTN10.34

  MLTN08.34T

  MLTN09.34T

  MLTN10.34T

  36

  MLTN08.36

  MLTN09.36

  MLTN10.36

  MLTN08.36T

  MLTN09.36T

  MLTN10.36T

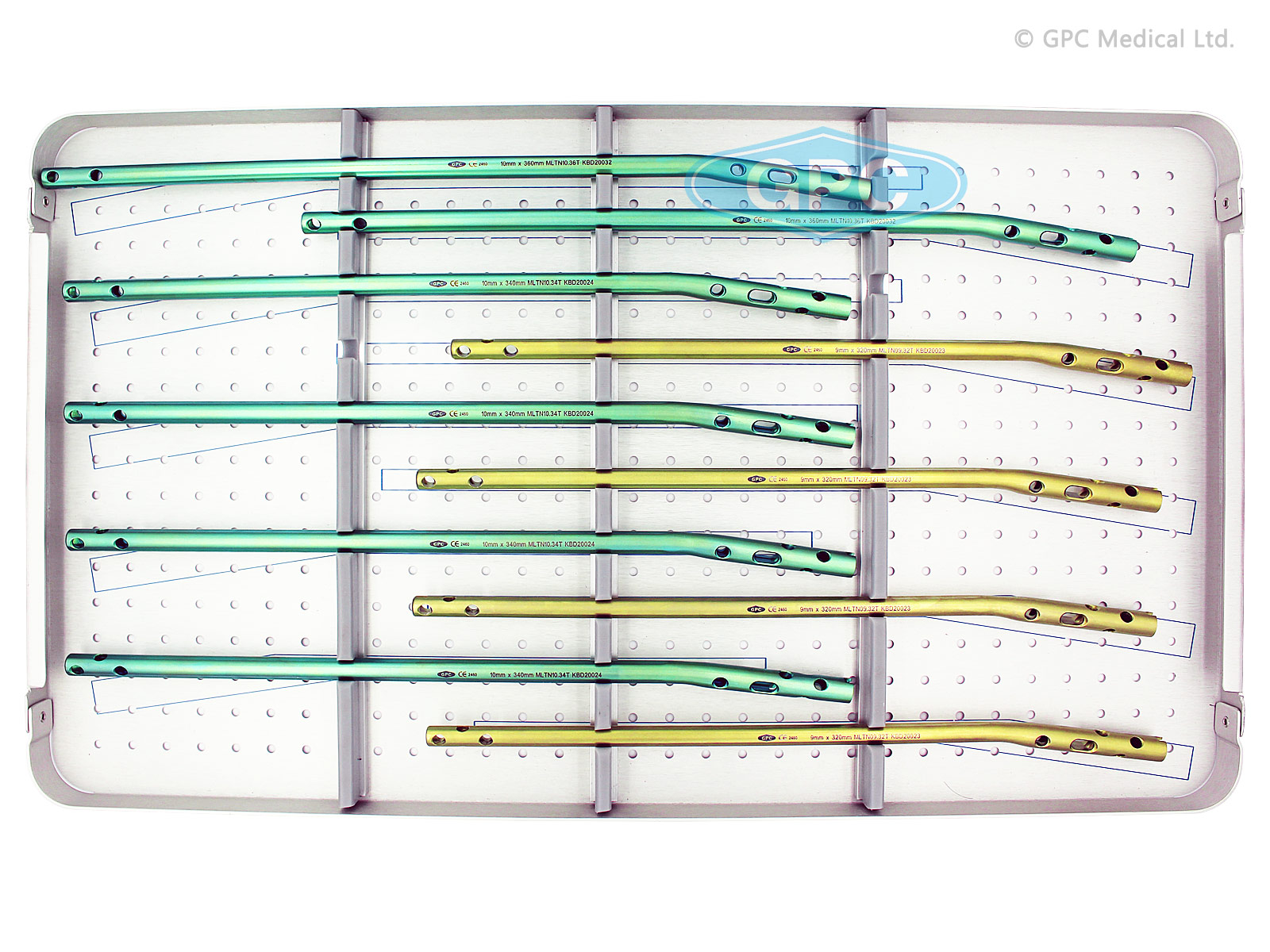

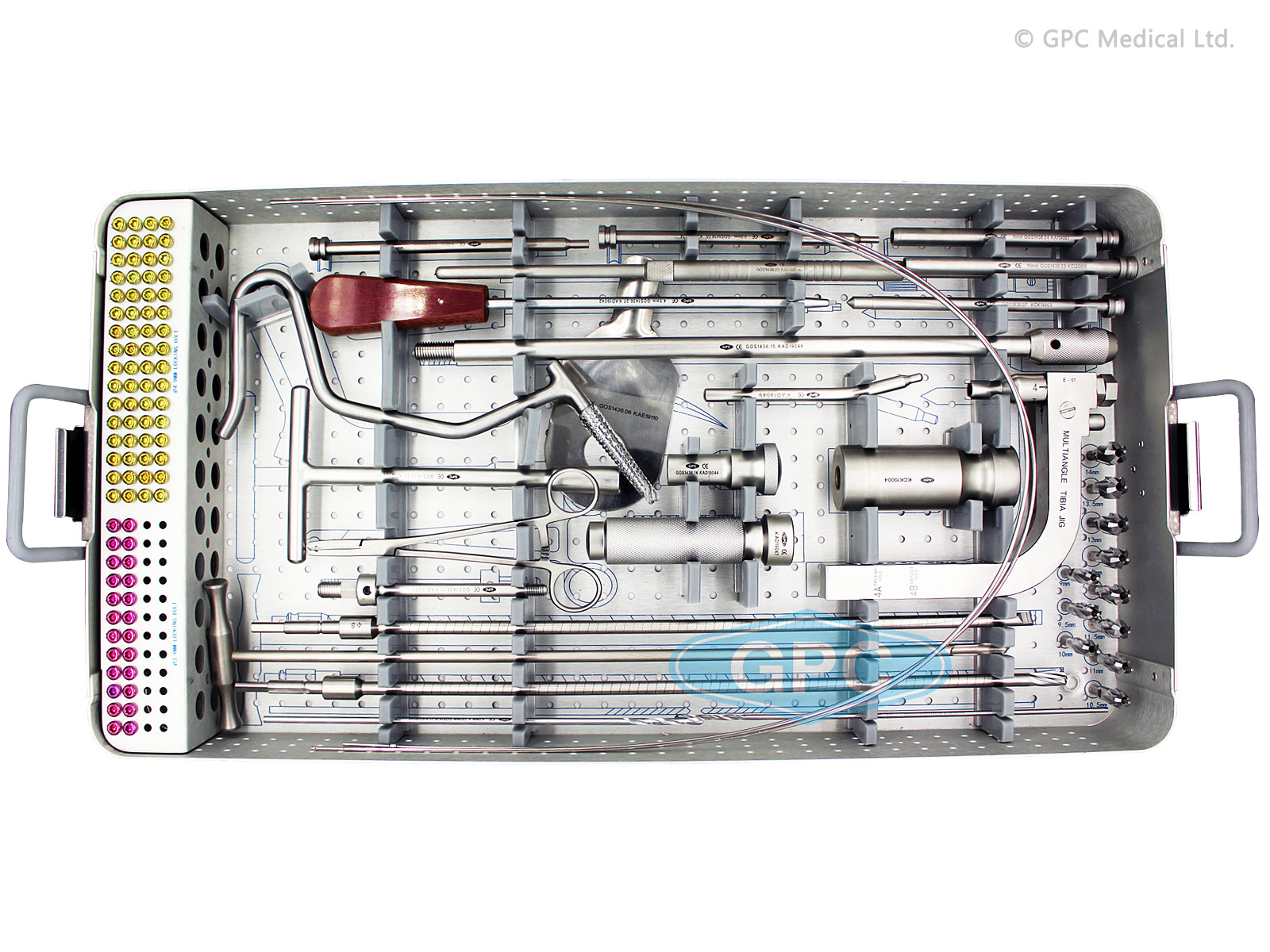

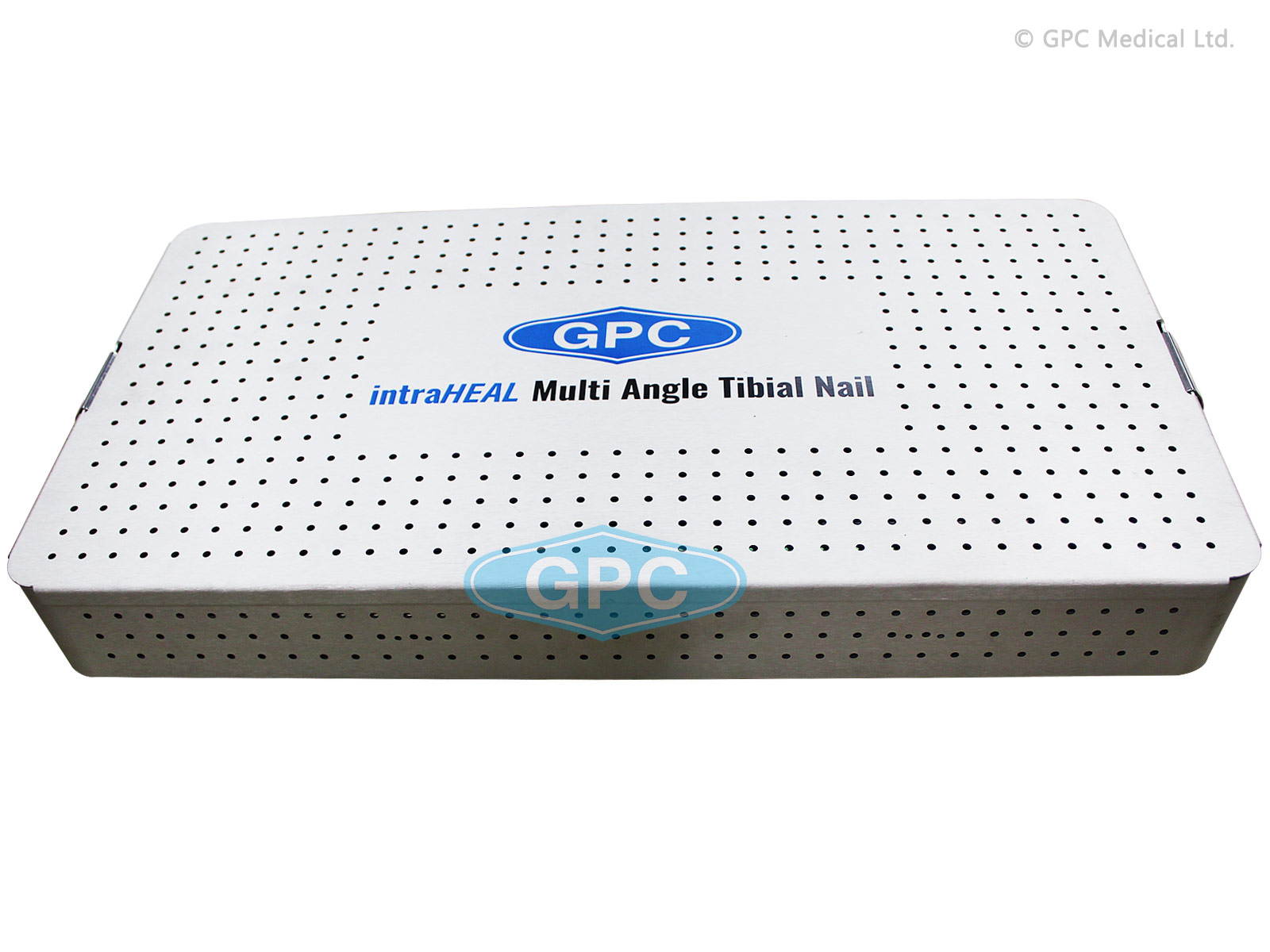

intraHEAL Instrument Set:
