Specifications:
Features

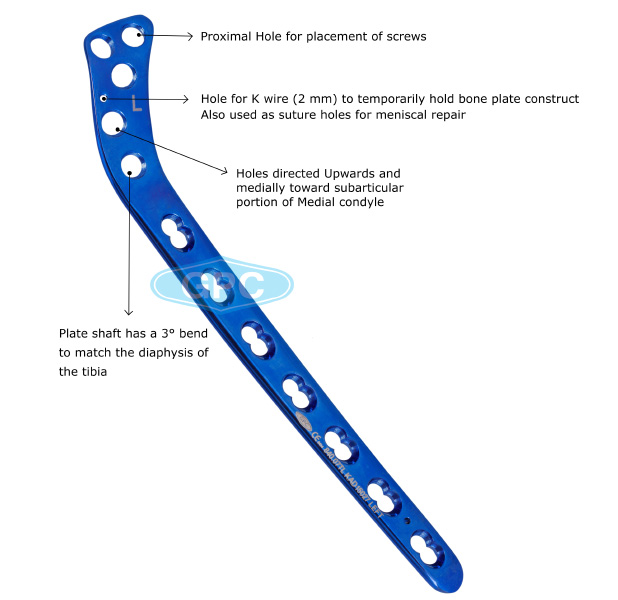

- Anatomically shaped- right or left configured
- Fixed angle construct with convergence of proximal screws and the obliquely directed screws
- Beveled tip for submuscular insertion with minimal soft tissue stripping
- Smaller area of post-fixation avascularity
- The combination of conventional and locking screws offers optimum fixation regardless of bone density
- Screw heads are recessed into the plate holes for minimum screw prominence
- Available in both Titanium & Stainless steel
Sizes Available
No. of Holes | Stainless Steel | Titanium | ||
---|---|---|---|---|
Code- Left | Code- Right | Code- Left | Code- Right | |
4 | 840.04L | 840.04R | 840.04TL | 840.04TR |
6 | 840.06L | 840.06R | 840.06TL | 840.06TR |
8 | 840.08L | 840.08R | 840.08TL | 840.08TR |
10 | 840.10L | 840.10R | 840.10TL | 840.10TR |
12 | 840.12L | 840.12R | 840.12TL | 840.12TR |
14 | 840.14L | 840.14R | 840.14TL | 840.14TR |
