FIXLOCK PLATING SYSTEM

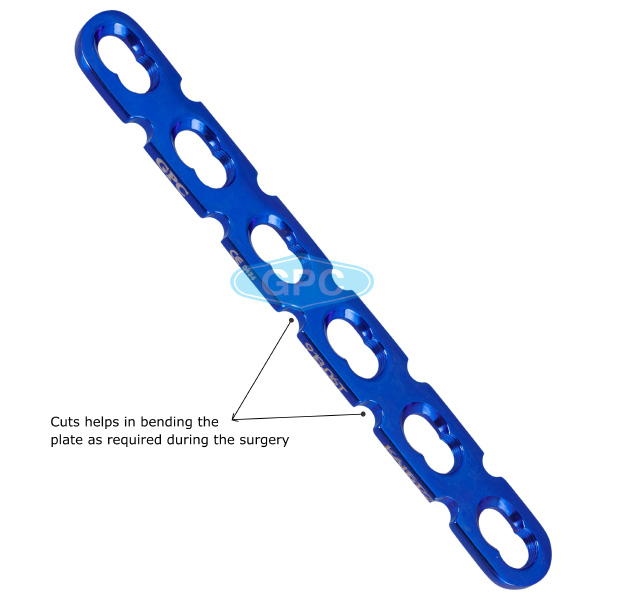

fixLOCK Reconstruction Plate, 4.5 mm

Specifications:

Features


  • Easily contoured and moulded according to the surgeons requirement
  • Low profile construct for minimum implant prominence
  • Uniform stiffness of all segments, prolonging fatigue life of the implant Smaller area of post-fixation avascularity
  • The combination of conventional and locking screws offers optimum fixation regardless of bone density
  • Available in both Titanium & Stainless steel

Sizes Available


No. of Holes Length (mm) CODE
S.S. Titanium
4 58 918.04 918.04T
5 70 918.05 918.05T
6 82 918.06 918.06T
7 94 918.07 918.07T
8 106 918.08 918.08T
9 118 918.09 918.09T
10 130 918.10 918.10T
11 142 918.11 918.11T
12 154 918.12 918.12T
13 166 918.13 918.13T
14 178 918.14 918.14T
15 190 918.15 918.15T
16 190 918.16 918.16T

fixLOCK Instrument Set:
