FIXLOCK PLATING SYSTEM

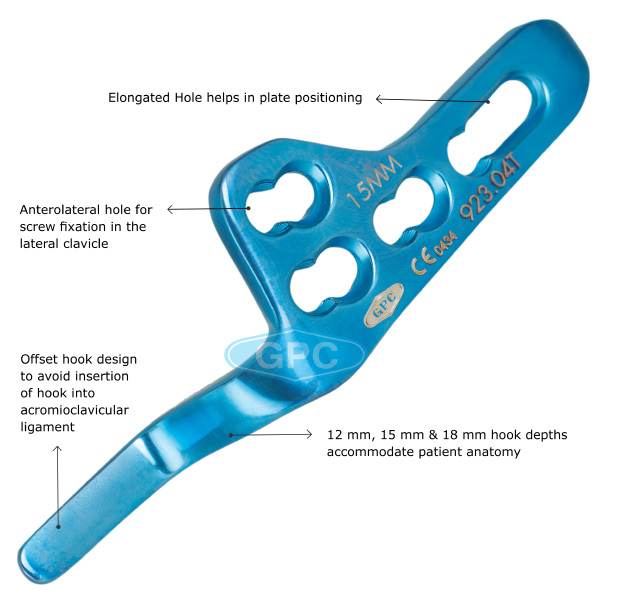

fixLOCK Clavicle Hook Plate

Specifications:

Features


  • Anatomically precontoured right and left configured plates
  • Hook is placed on the posterior aspect of the clavicle with plate over the superior surface of clavicle
  • Low profile construct with minimum implant prominence or soft tissue irritation
  • Shaft holes for 3.5 mm locking or 3.5 mm cortical screws
  • Uniform stiffness of all segments, prolonging fatigue life of the implant
  • Smaller area of post-fixation avascularity
  • Thin plate profile easy to contour
  • Available in both Titanium & Stainless steel

Sizes Available


Length Depth - 12 mm Depth - 15 mm Depth - 18 mm
Row S.S. Titanium S.S. Titanium S.S. Titanium
4 Holes, Right 923.124R 923.124TR 923.154R 923.154TR 923.184R 923.184TR
4 Holes, Left 923.124L 923.124TL 923.154L 923.154TL 923.184L 923.184TL
5 Holes, Right 923.125R 923.125TR 923.155R 923.155TR 923.185R 923.185TR
5 Holes, Left 923.125L 923.125TL 923.155L 923.155TL 923.185L 923.185TL
6 Holes, Right 923.126R 923.126TR 923.156R 923.156TR 923.186R 923.186TR
6 Holes, Left 923.126L 923.126TL 923.156L 923.156TL 923.186L 923.186TL
7 Holes, Right 923.127R 923.127TR 923.157R 923.157TR 923.187R 923.187TR
7 Holes, Left 923.127L 923.127TL 923.157L 923.157TL 923.187L 923.187TL
8 Holes, Right 923.128R 923.128TR 923.158R 923.158TR 923.188R 923.188TR
8 Holes, Left 923.128L 923.128TL 923.158L 923.158TL 923.188L 923.188TL

fixLOCK Instrument Set:
