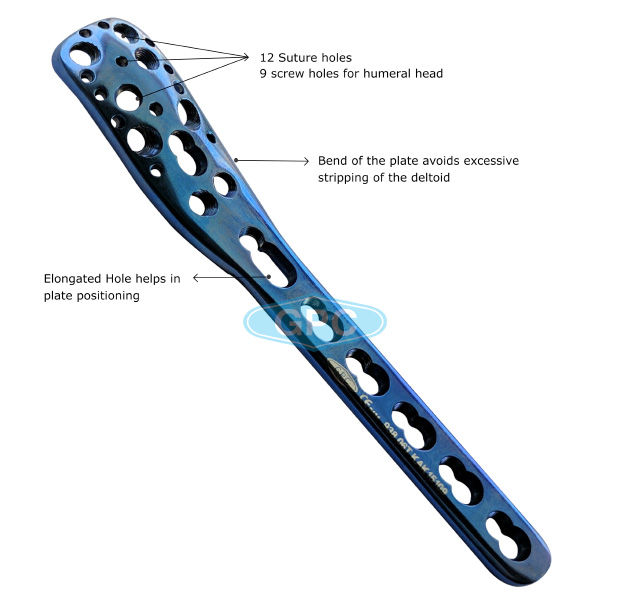

fixLOCK Philos Plate Manufacturers

Features

Can be used on either side- left or right
Implant is anatomically contoured better than 3.5 mm proximal humerus locking plate
Uniform stiffness of all segments, prolonging fatigue life of the implant
Smaller area of post-fixation avascularity
The combination of conventional and locking screws offers optimum fixation regardless of bone density
Temporary reduction can be achieved by K-wire and the holes can later be utilized as suture holes
Screw trajectory designed for optimal fixation of comminuted fractures
Suture holes- For fixation of sutures or circlage wires attached to rotator cuff muscles or the tubercles, it neutralizes the muscle tension and helps to maintain reduction
Fixed angle stable construct with long oblique screw to stabilize medial calcar fragment
More screw options in humeral head as compared 3.5 mm proximal humerus locking plate
Available in both Titanium & Stainless steel

Item Code: GOS1439S

GOS1439S	fixLOCK Instrument Set- Small
BTD1130	Twist Drill (Drill Bit) Q.C.
BTD1130.25.130	Dia 2.5 mm, 130 Length	2
BTD1130.27.130	Dia 2.7 mm, 130 Length	2
TD1130.35.130	Dia 3.5 mm, 130 Length	2
ILBS736.28	Locking Drill Bit (Q.C) 2.8 mm	2
IBS700	Counter Sink 3.5 mm	1
IBS762.30	Bone Tap (Q.C) 3.5 mm	2
IBS762.40	Bone Tap (Q.C) Cancellous 4 mm	2
IBS765	Quick Coupling Handle	1
IBS723.20	Tripple Drill Guide 2 mm	1
IBS720.25	Insert Drill Sleeve 2.5 mm	1
IBS716.35	Locking Drill Sleeve 3.5 mm	4
IBS786.35	Hexagonal Screw Driver with Sleeve 3.5 mm	1
ILBS746.35	Hexagonal screw Driver Shaft 3.5 mm	1
ILBS786.35	Torque Screw Driver 3.5 mm	1
ILBS737	Universal Drill Guide	1
ILBS738	Push Pull Reduction Device	1
IBS753	Screw Holding Forcep	1
IBS709	Depth Gauge 3.5 mm	1
IBP630.01	Plate Bender small	2
REH1053	Sharp Hook	1
IBS739	Threaded Plate Holder	1
IPW952	Wire Bending Plier	1
BHF1249.13	Reduction Forcep Pointed 130 mm (R.Lock)	2
BHF1249.14	Reduction Forcep Pointed 140 mm (R.Lock)	2
BHF1247.15	Reduction Forcep Serreted 150 mm (R.Lock)	2
BHF1246.15	Self Centring Bone Holding 150 mm	1
IBP637.35	Bone & Bone Plate Holding Forcep 3.5 mm	1
REH1064.25	Hohman Retractor 8 mm	2
REH1064.40	Hohman Retractor Broad Shank	2
REH1067	Periosteom Elevator with Fibre Handle 6 mm	1
ILBS740.07	Locking Bending Templates 7 Hole	1
ILBS740.09	Locking Bending Templates 9 Hole	1
ILBS740.12	Locking Bending Templates 12 Hole	1
AGC1439S	Graphic container Aluminium	1

Item Code: GOS1439L

GOS1439L	fixLOCK Instrument Set- Large
BTD1130	Twist Drill (Drill Bit) Q.C.
BTD1130.32.130	Dia 3.2 mm, 130 Length	2
BTD1130.45.130	Dia 4.5 mm, 130 Lenght	2
IBS700.04	Counter Sink 4.5 mm	1
IBS760.45	Bone Tap 4.5 mm	2
IBS760.60	Bone tap 6.5 mm	1
IBS765	Q.Coupling Handle	1
IBS720.32	Insert Drill Sleeve 3.2 mm	1
IBS735.45	Drill & tap sleeve Combind 3.2/4.5 mm	1
IBS735.65	Drill & tap sleeve Combind 3.2/6.5 mm	1
ILBS746.45	Large Screw Driver Shaft 4.5 mm	1
ILBS747.45	Hexagonal Screw Driver 4.5 mm	1
IBS708	Depth Gauge large	1
IBS765	Pointed Drill Guide	1
IBS777	Large Neutral Eccentric Drill Guide 3.2/4.5 mm	1
BHF1246.24	Self Centring Bone holding 240 mm	2
REH1064.18	Hohman Retractor 18 mm	1
REH1064.22	Hohman Retractor 22 mm	1
REH1067.14	Periosteom Elevator 14 mm	1
BHF1247.24	Reduction Forcep 240 mm	2
ILBS716.05	Locking Drill Sleeve 5.0 mm	1
ILBS716.65	Locking Drill Sleeve 6.5 mm	1
ILBS736.50	Locking Drill Bit 5.0 mm	1
ILBS716.65	Locking Drill Bit 6.5 mm	1
ILBS739	Threaded Plate Holder	2
ILBS786.50	Torque Screw Driver 5.0 mm	1
AGC1439L	Graphic container Aluminium	1
