FIXLOCK PLATING SYSTEM

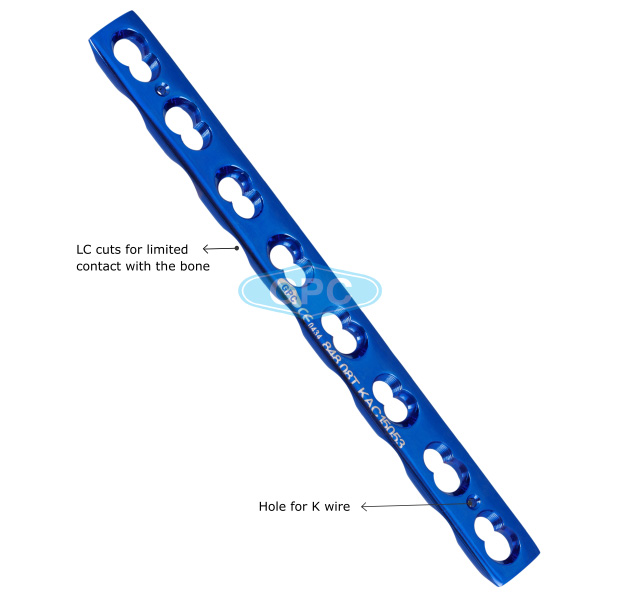

fixLOCK Narrow Plate, 4.5 mm

Specifications:

Features


  • Used over the tensile surface of bones to work on tension band principle
  • Uniform stiffness of all segments, prolonging fatigue life of the implant
  • Smaller area of post-fixation avascularity
  • The combination of conventional and locking screws offers optimum fixation regardless of bone density
  • Dynamic compression unit offers 2 mm of axial compression
  • Available in both Titanium & Stainless steel

Sizes Available


No. of Holes CODE
S.S. Titanium
4 848.04 848.04T
5 848.05 848.05T
6 848.06 848.06T
7 848.07 848.07T
8 848.08 848.08T
9 848.09 848.09T
10 848.10 848.10T
11 848.11 848.11T
12 848.12 848.12T
14 848.14 848.14T
16 848.16 848.16T

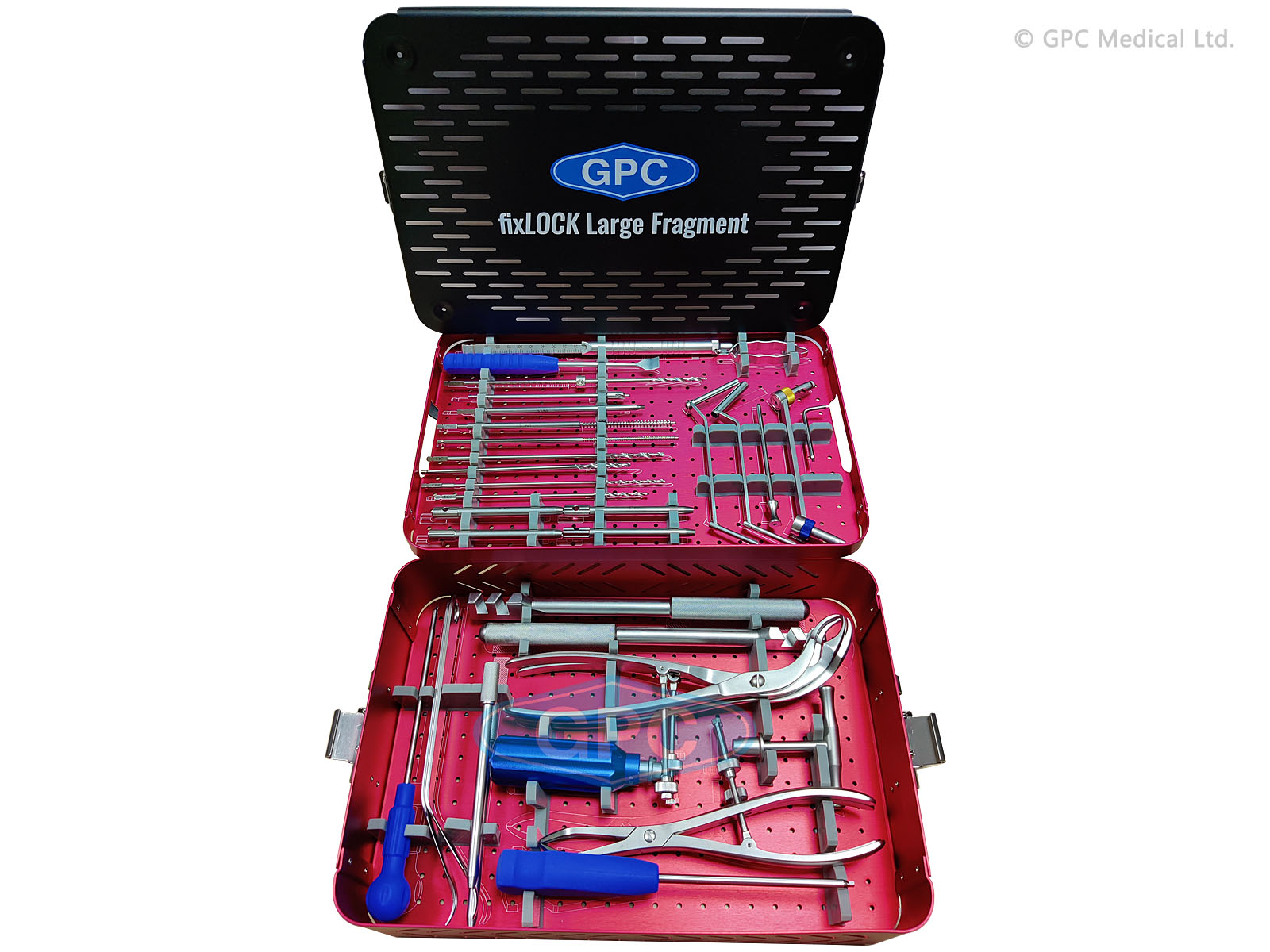

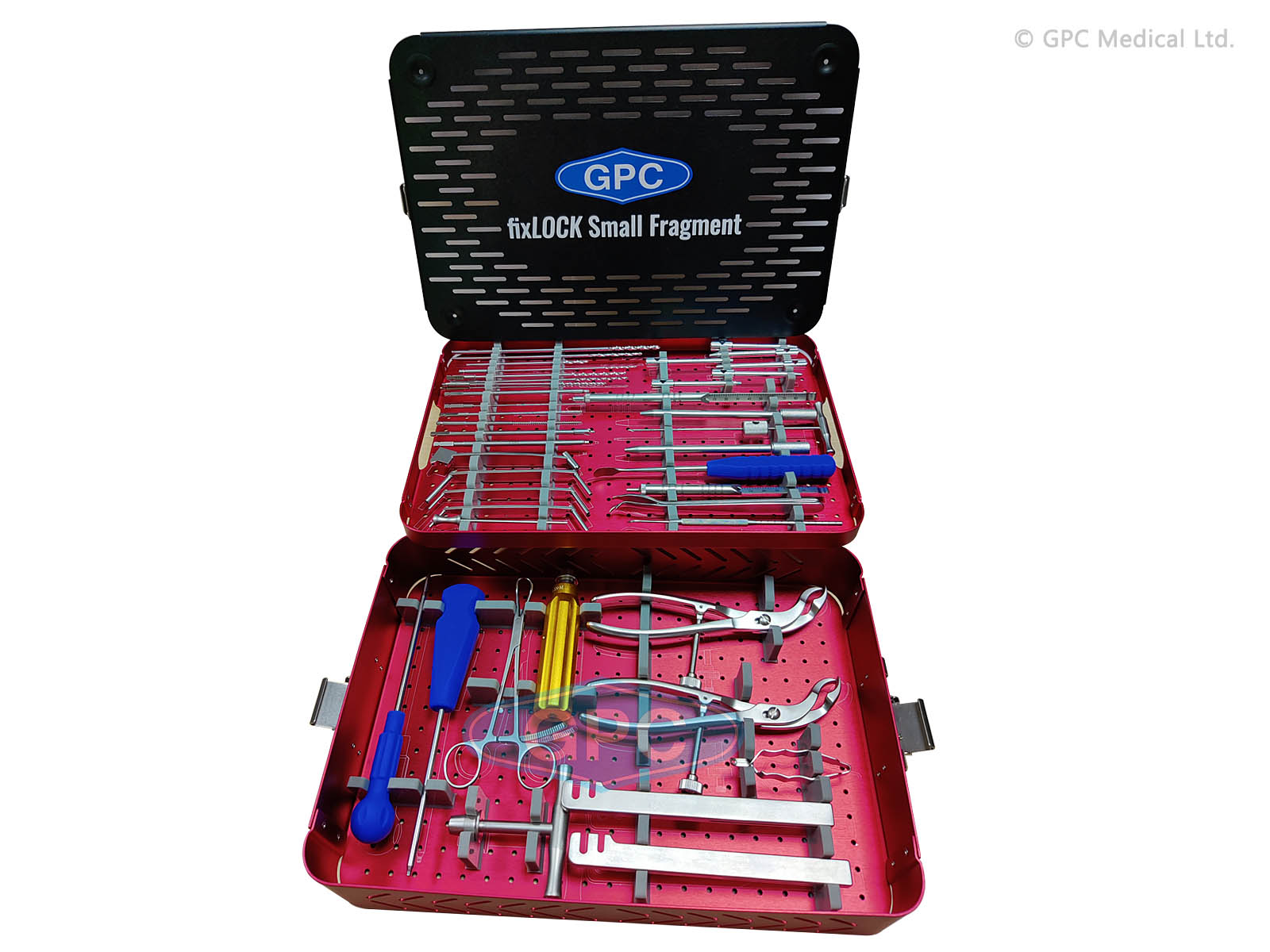

fixLOCK Instrument Set:
