2.7 mm Distal Humerus Plate | 3.5 mm Distal Humerus Plate Manufacturer

Features

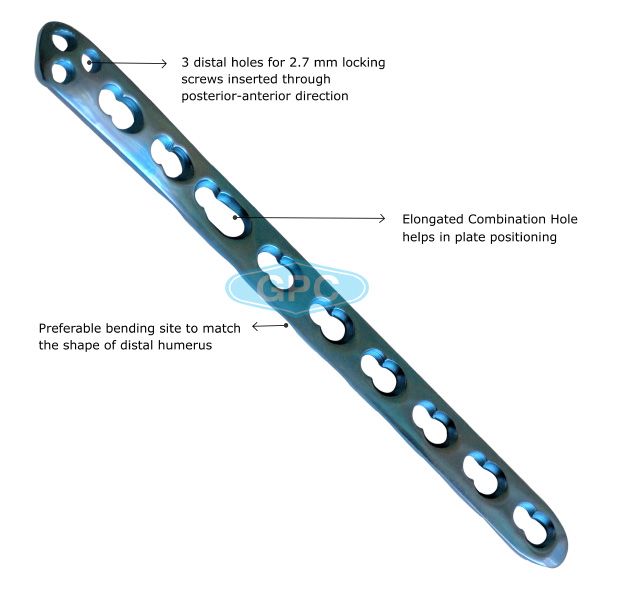

Anatomically shaped- right or left (marked over the plate)
The plates are pre-shaped to match the anatomy of the distal humerus with a limited contact low profile design
Tapered tip for submuscular insertion with minimal soft tissue stripping
Uniform stiffness of all segments, prolonging fatigue life of the implant
Smaller area of post-fixation avascularity
The combination of conventional and locking screws offers optimum fixation regardless of bone density
Screw-heads are recessed into the plate holes for minimum screw prominence
Bending of the distal part is recommended to adjust the optimal position of plate for placement of long screws through the articular block
Bending to be done in the region of combination holes as it frequently alters the thread pattern of locking hole
Available in both Titanium & Stainless steel

Item Code: GOS1439S

GOS1439S	fixLOCK Instrument Set- Small
BTD1130	Twist Drill (Drill Bit) Q.C.
BTD1130.25.130	Dia 2.5 mm, 130 Length	2
BTD1130.27.130	Dia 2.7 mm, 130 Length	2
TD1130.35.130	Dia 3.5 mm, 130 Length	2
ILBS736.28	Locking Drill Bit (Q.C) 2.8 mm	2
IBS700	Counter Sink 3.5 mm	1
IBS762.30	Bone Tap (Q.C) 3.5 mm	2
IBS762.40	Bone Tap (Q.C) Cancellous 4 mm	2
IBS765	Quick Coupling Handle	1
IBS723.20	Tripple Drill Guide 2 mm	1
IBS720.25	Insert Drill Sleeve 2.5 mm	1
IBS716.35	Locking Drill Sleeve 3.5 mm	4
IBS786.35	Hexagonal Screw Driver with Sleeve 3.5 mm	1
ILBS746.35	Hexagonal screw Driver Shaft 3.5 mm	1
ILBS786.35	Torque Screw Driver 3.5 mm	1
ILBS737	Universal Drill Guide	1
ILBS738	Push Pull Reduction Device	1
IBS753	Screw Holding Forcep	1
IBS709	Depth Gauge 3.5 mm	1
IBP630.01	Plate Bender small	2
REH1053	Sharp Hook	1
IBS739	Threaded Plate Holder	1
IPW952	Wire Bending Plier	1
BHF1249.13	Reduction Forcep Pointed 130 mm (R.Lock)	2
BHF1249.14	Reduction Forcep Pointed 140 mm (R.Lock)	2
BHF1247.15	Reduction Forcep Serreted 150 mm (R.Lock)	2
BHF1246.15	Self Centring Bone Holding 150 mm	1
IBP637.35	Bone & Bone Plate Holding Forcep 3.5 mm	1
REH1064.25	Hohman Retractor 8 mm	2
REH1064.40	Hohman Retractor Broad Shank	2
REH1067	Periosteom Elevator with Fibre Handle 6 mm	1
ILBS740.07	Locking Bending Templates 7 Hole	1
ILBS740.09	Locking Bending Templates 9 Hole	1
ILBS740.12	Locking Bending Templates 12 Hole	1
AGC1439S	Graphic container Aluminium	1

Item Code: GOS1439L

GOS1439L	fixLOCK Instrument Set- Large
BTD1130	Twist Drill (Drill Bit) Q.C.
BTD1130.32.130	Dia 3.2 mm, 130 Length	2
BTD1130.45.130	Dia 4.5 mm, 130 Lenght	2
IBS700.04	Counter Sink 4.5 mm	1
IBS760.45	Bone Tap 4.5 mm	2
IBS760.60	Bone tap 6.5 mm	1
IBS765	Q.Coupling Handle	1
IBS720.32	Insert Drill Sleeve 3.2 mm	1
IBS735.45	Drill & tap sleeve Combind 3.2/4.5 mm	1
IBS735.65	Drill & tap sleeve Combind 3.2/6.5 mm	1
ILBS746.45	Large Screw Driver Shaft 4.5 mm	1
ILBS747.45	Hexagonal Screw Driver 4.5 mm	1
IBS708	Depth Gauge large	1
IBS765	Pointed Drill Guide	1
IBS777	Large Neutral Eccentric Drill Guide 3.2/4.5 mm	1
BHF1246.24	Self Centring Bone holding 240 mm	2
REH1064.18	Hohman Retractor 18 mm	1
REH1064.22	Hohman Retractor 22 mm	1
REH1067.14	Periosteom Elevator 14 mm	1
BHF1247.24	Reduction Forcep 240 mm	2
ILBS716.05	Locking Drill Sleeve 5.0 mm	1
ILBS716.65	Locking Drill Sleeve 6.5 mm	1
ILBS736.50	Locking Drill Bit 5.0 mm	1
ILBS716.65	Locking Drill Bit 6.5 mm	1
ILBS739	Threaded Plate Holder	2
ILBS786.50	Torque Screw Driver 5.0 mm	1
AGC1439L	Graphic container Aluminium	1
