FIXLOCK PLATING SYSTEM

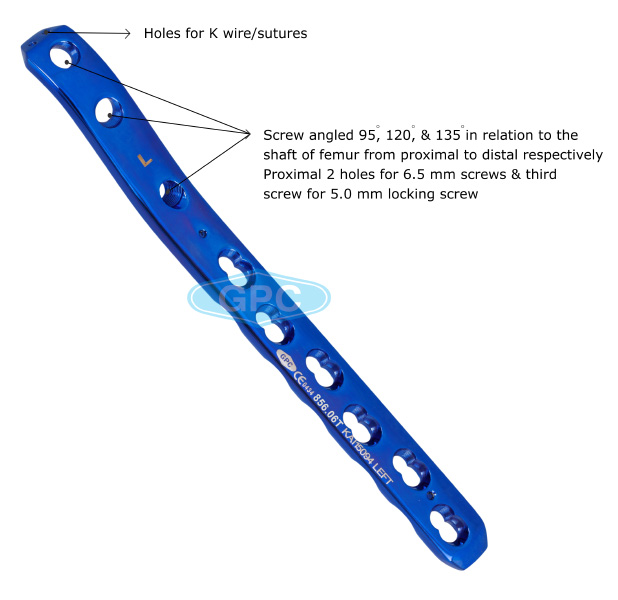

fixLOCK Proximal Femur Plate

Specifications:

Features


  • Anatomically right or left considering average anteversion of the femoral neck
  • Plate contoured with proximal screw region and distal shaft area approximated to the bone
  • Fixed angle construct with proximal screw directed into the femoral head & obliquely directed screw just distal to the trochanteric screw is directed upwards and forwards converging towards proximal screw
  • Oblique screw provides support in the calcar region
  • Beveled tip for submuscular insertion with minimal soft tissue stripping
  • Smaller area of post-fixation avascularity
  • Screw trajectory designed for optimal fixation of comminuted fractures
  • The combination of conventional and locking screws offers optimum fixation regardless of bone density
  • Available in both Titanium & Stainless steel

Sizes Available


No. of Holes CODE
S.S. Titanium
6 856.06 856.06T
7 856.07 856.07T
8 856.08 856.08T
9 856.09 856.09T
10 856.10 856.10T
11 856.11 856.11T
12 856.12 856.12T
13 856.13 856.13T
14 856.14 856.14T
15 856.15 856.15T

fixLOCK Instrument Set:
