FIXLOCK PLATING SYSTEM

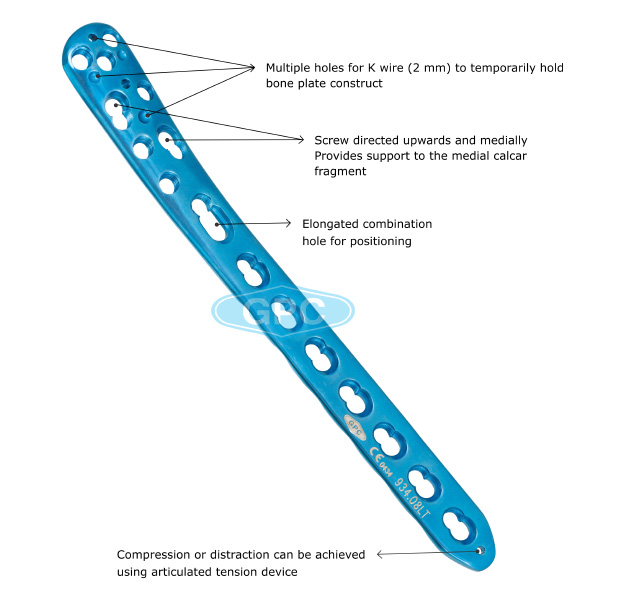

fixLOCK Medial Distal Tibia Plate, without Tab

Specifications:

Features


  • Anatomically shaped- right or left (marked over the plate)
  • Low profile construct with minimum implant prominence or soft tissue irritation
  • Well contoured curvature of the plate
  • Locking screws at the curvature to ensure strength to the construct even if the screw purchase is compromised
  • Tapered tip for submuscular insertion with minimal soft tissue stripping
  • Uniform stiffness of all segments, prolonging fatigue life of the implant
  • Smaller area of post-fixation avascularity
  • The combination of conventional and locking screws offers optimum fixation regardless of bone density
  • Screw heads are recessed into the plate holes for minimum screw prominence
  • Available in both Titanium & Stainless steel

Sizes Available


No. of
Holes
Stainless Steel Titanium
Code- Left Code- Right Code- Left Code- Right
4 934.04L 934.04R 934.04TL 934.04TR
6 934.06L 934.06R 934.06TL 934.06TR
8 934.08L 934.08R 934.08TL 934.08TR
10 934.10L 934.10R 934.10TL 934.10TR
12 934.12L 934.12R 934.12TL 934.12TR
14 934.14L 934.14R 934.14TL 934.14TR
