FIXLOCK PLATING SYSTEM

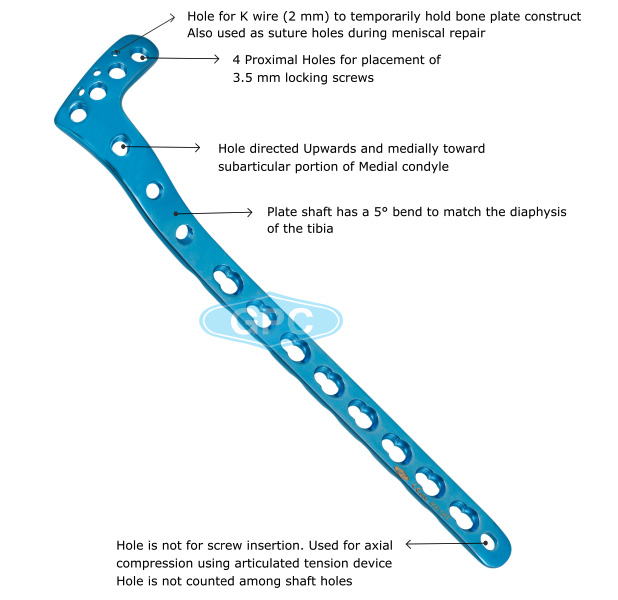

fixLOCK Proximal Tibia Plate, 3.5 mm

Specifications:

Features


  • Anatomically shaped- right or left configured
  • Fixed angle construct with convergence of proximal screws and the obliquely directed screws
  • Beveled tip for submuscular insertion with minimal soft tissue stripping
  • Smaller area of post-fixation avascularity
  • Long plates are available which are suitable for fracture extending distally into the shaft
  • Smooth transition from thin proximal segment and thick shaft segment makes the plate auto-contourable. With plate fixed to the proximal segment when first screw used in shaft segment is cortical screw, plate furthers contours according to the patients' bone
  • The combination of conventional and locking screws offers optimum fixation regardless of bone density
  • Screw heads are recessed into the plate holes for minimum screw prominence
  • Available in both Titanium & Stainless steel

Sizes Available


Proximal Tibial Locking Plate 3.5mm Left/Right

No. of  Holes Stainless Steel Titanium
Code- Left Code- Right Code- Left Code- Right
4 906.04L 906.04R 906.04TL 906.04TR
6 906.06L 906.06R 906.06TL 906.06TR
8 906.08L 906.08R 906.08TL 906.08TR
10 906.10L 906.10R 906.10TL 906.10TR
12 906.12L 906.12R 906.12TL 906.12TR
14 906.14L 906.14R 906.14TL 906.14TR
