Specifications:

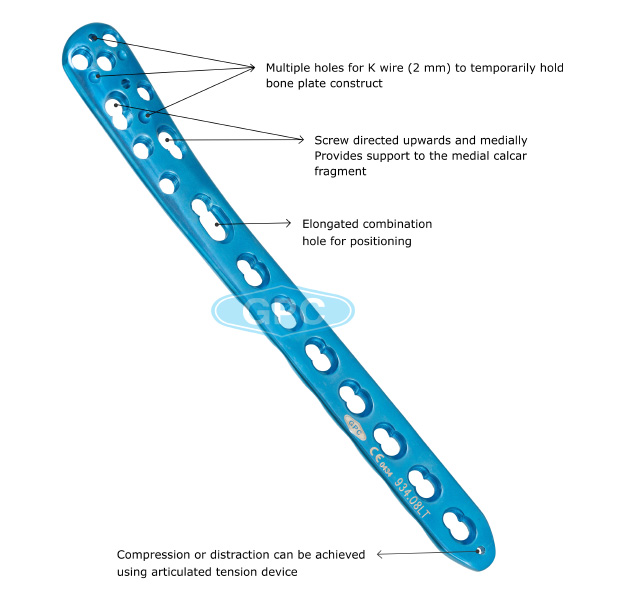

Features
- Anatomically shaped- right or left (marked over the plate)
- Low profile construct with minimum implant prominence or soft tissue irritation
- Well contoured curvature of the plate
- Locking screws at the curvature to ensure strength to the construct even if the screw purchase is compromised
- Tapered tip for submuscular insertion with minimal soft tissue stripping
- Uniform stiffness of all segments, prolonging fatigue life of the implant
- Smaller area of post-fixation avascularity
- The combination of conventional and locking screws offers optimum fixation regardless of bone density
- Screw heads are recessed into the plate holes for minimum screw prominence
- Available in both Titanium & Stainless steel
Sizes Available
No. of Holes |
Stainless Steel | Titanium | ||
Code- Left | Code- Right | Code- Left | Code- Right | |
4 | 934.04L | 934.04R | 934.04TL | 934.04TR |
6 | 934.06L | 934.06R | 934.06TL | 934.06TR |
8 | 934.08L | 934.08R | 934.08TL | 934.08TR |
10 | 934.10L | 934.10R | 934.10TL | 934.10TR |
12 | 934.12L | 934.12R | 934.12TL | 934.12TR |
14 | 934.14L | 934.14R | 934.14TL | 934.14TR |
