FIXLOCK PLATING SYSTEM

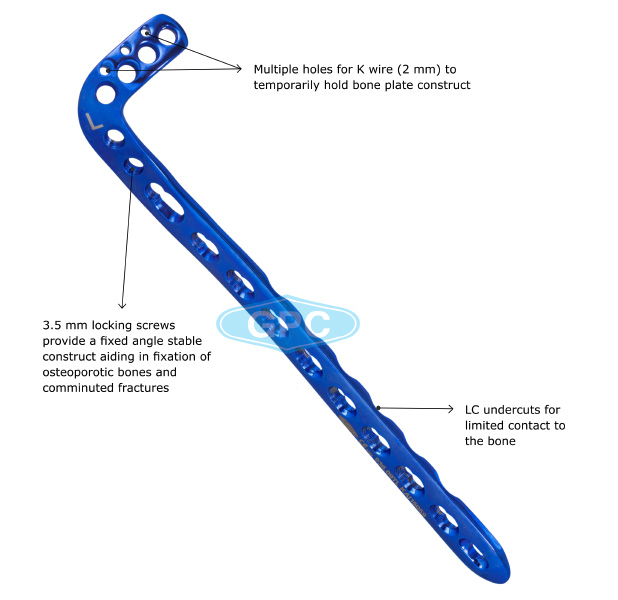

fixLOCK Anterolateral Distal Tibia Plate

Specifications:

Features


  • Anatomically shaped- right or left (marked over the plate)
  • Low profile construct with minimum implant prominence or soft tissue irritation
  • Helical twist ensures well contoured plate for laterally placed shaft holes and anteriorly placed metaphyseal segment holes
  • Locking screws at the curvature to ensure strength to the construct even if the screw purchase is compromised
  • Tapered tip for submuscular insertion with minimal soft tissue stripping
  • Uniform stiffness of all segments, prolonging fatigue life of the implant
  • Smaller area of post-fixation avascularity
  • Available in both Titanium & Stainless steel

Sizes Available


No. of
Holes
Length
(mm)
Stainless Steel Titanium
Code- Left Code- Right Code- Left Code- Right
4 120 936.04L 936.04R 936.04TL 936.04TR
6 160 936.06L 936.06R 936.06TL 936.06TR
8 200 936.08L 936.08R 936.08TL 936.08TR
10 240 936.10L 936.10R 936.10TL 936.10TR
12 280 936.12L 936.12R 936.12TL 936.12TR
14 320 936.14L 936.14R 936.14TL 936.14TR

fixLOCK Instrument Set:
