NON-LOCKING PLATING SYSTEM

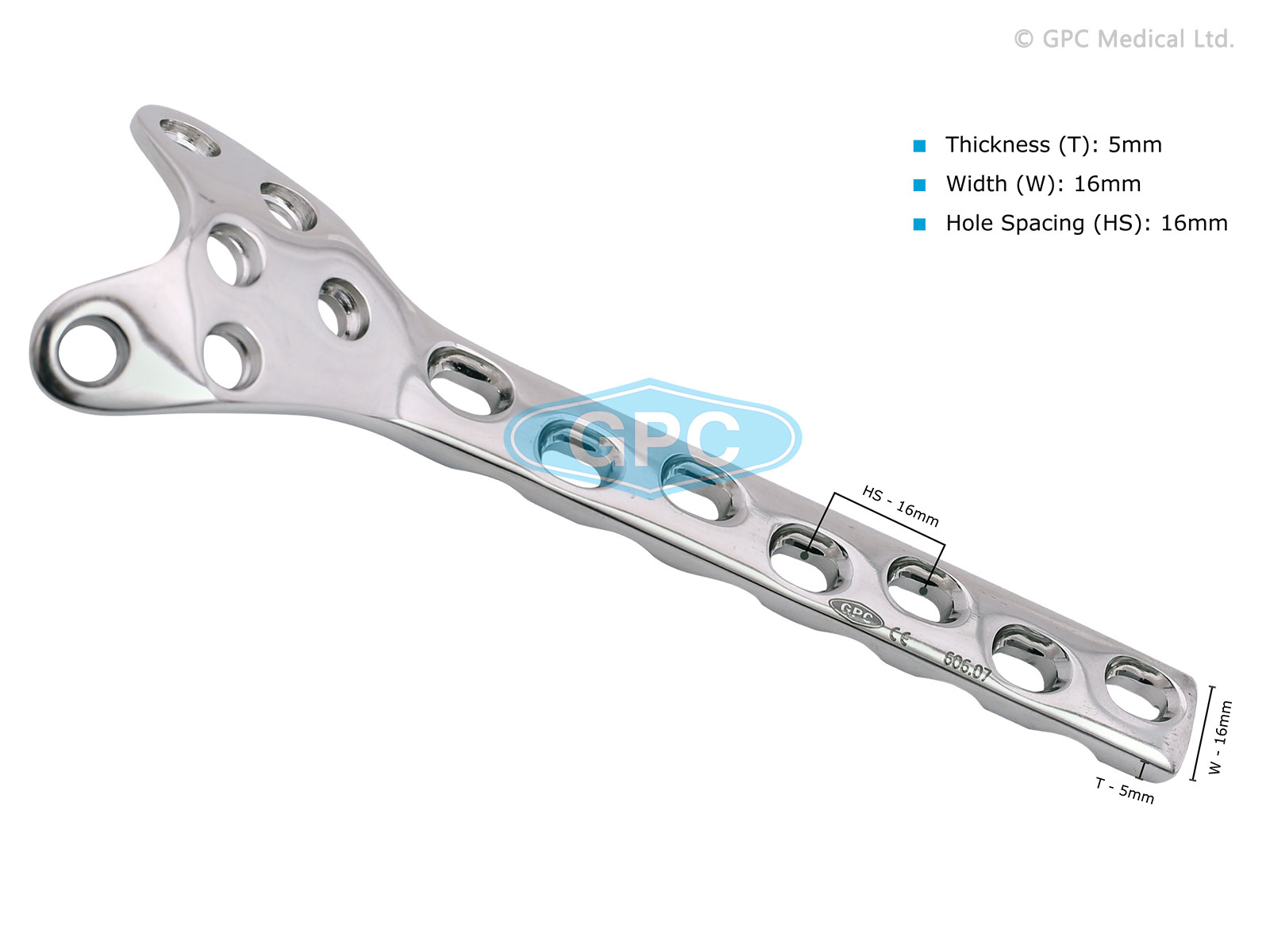

Condylar Buttress Plat, 4.5 mm

Specifications:

Features

  • Broad cloverleaf shaped plate
  • Designed to buttress the comminuted supracondylar fractures
  • Designed to contour to the lateral aspect of the distal femur cortex
  • Especially useful in comminuted distal femur fractures with a coronal shear fracture
  • Head holes suitable for 6.5 mm cancellous screws
  • Shaft compression holes xed with cortex screws Dia. 4.5 mm
  • Available in both Titanium and Stainless Steel

Profile

  • Thickness (T): 5 mm
  • Width (W): 16 mm
  • Hole Spacing (HS): 16 mm

No. of Holes Code - Left Code - Right
S.S. Titanium S.S. Titanium
7 606.07L 606.07TL 606.07R 606.07TR
9 606.09L 606.09TL 606.09R 606.09TR
11 606.11L 606.11TL 606.11R 606.11TR
13 606.13L 606.13TL 606.13R 606.13TR
15 606.15L 606.15TL 606.15R 606.15TR
