Specifications:

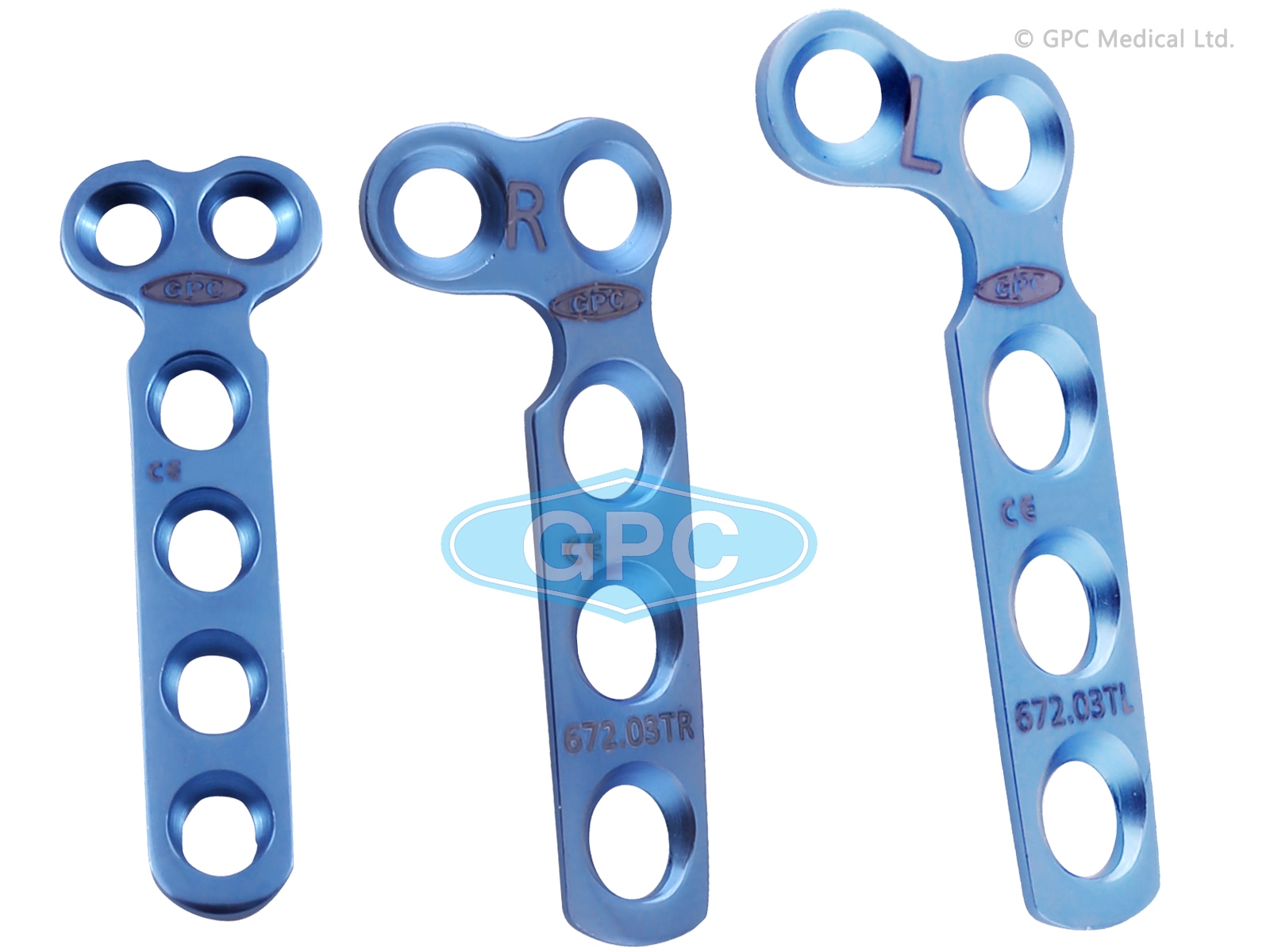

Features
- 2 holes in the head and 3 holes in shaft
- L and T profile provides additional fixation for head of metacarpals and metatarsals
- Allows compression of fracture fragment by eccentric placement of screws
- Low profile
- Can be contoured to the anatomy of the bone
- Minimal soft tissue irritation
- Fixed with 2.7 mm cortex screws
- Available in both Titanium and Stainless Steel
Profile
- Width (W): 7 mm
- Hole Spacing (HS): 8 mm
Pin | CODE | |
S.S. | Titanium | |
L-Left | 672.31 | 672.31T |
L-Right | 672.32 | 672.32T |
L-Oblique | 672.33 | 672.33T |
R-Oblique | 672.34 | 672.34T |
T-Shaped | 672.41 | 672.41T |
