NON-LOCKING PLATING SYSTEM

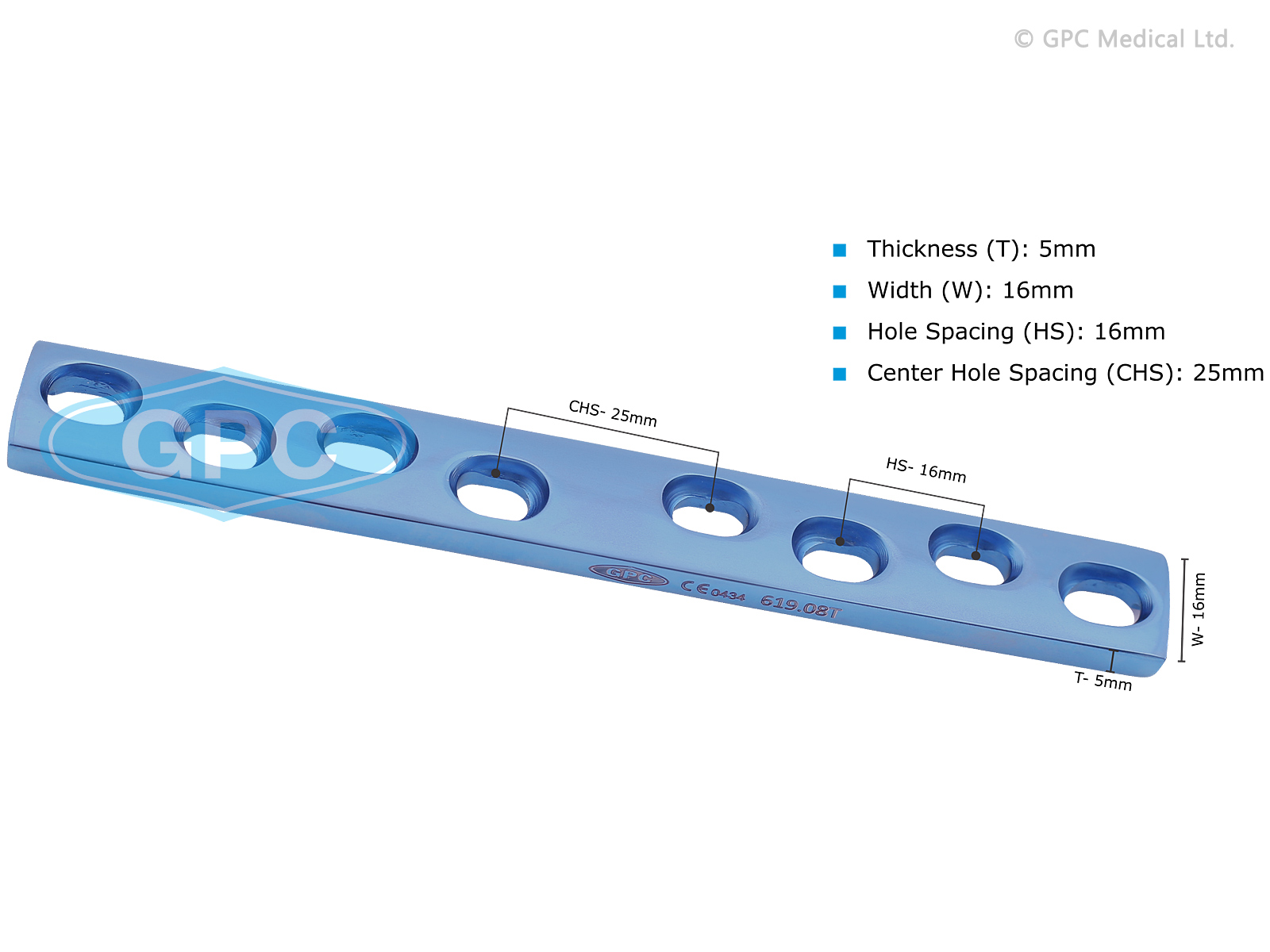

Dynamic Self Compression Plate, 4.5 mm - Broad

Specifications:

Features

  • Can be applied in various modes- compression, buttress and bridging mode
  • Used as tension band on femur
  • Self - compressing holes allow compression of fracture fragments
  • Has a middle section which is placed at the center of the fracture
  • Fixation with cortex screws Dia. 4.5 mm and cancellous screws Dia. 6.5 mm
  • Available in both Titanium and Stainless Steel


Profile

Thickness                          5 mm (S.S.)
Width                                 16mm
Hole Spacing                      16 and 25mm

No. of Holes CODE
S.S. Titanium
5 619.05 619.05T
6 619.06 619.06T
7 619.07 619.07T
8 619.08 619.08T
9 619.09 619.09T
10 619.10 619.10T
11 619.11 619.11T
12 619.12 619.12T
13 619.13 619.13T
14 619.14 619.14T
15 619.15 619.15T
16 619.16 619.16T
17 619.17 619.17T
18 619.18 619.18T
