NON-LOCKING PLATING SYSTEM

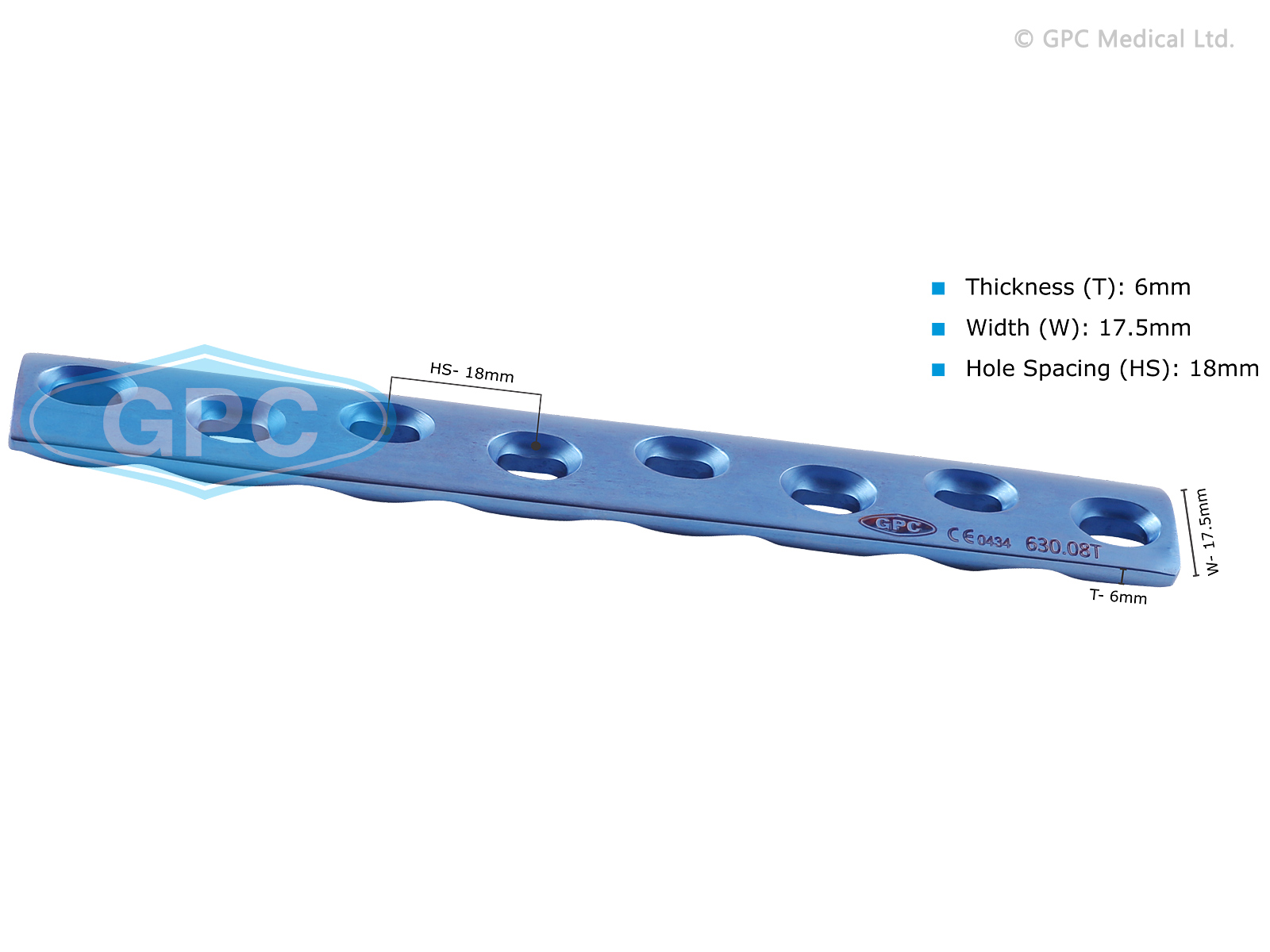

Limited Contact Dynamic Compression Plate (LC-DCP), 4.5 mm - Broad

Specifications:

Features

  • Allows dynamic compression of fracture fragments
  • Grooved under surface preserves the vascularity of the bone resulting in relative improvement of cortical perfusion
  • Uniform rigidity
  • Uniform stiffness allows smooth contouring of the plate to the bone.
  • Limited contact design protects the plate from localized high bending stresses
  • Can be applied in various modes - compression, protection, buttress, tension band and bridging mode
  • Fixation with 4.5 mm cortex screws and 6.5 mm cancellous screws
  • Available in both Titanium and Stainless Steel


No. of Holes CODE
S.S. Titanium
4 630.04 630.04T
5 630.05 630.05T
6 630.06 630.06T
7 630.07 630.07T
8 630.08 630.08T
9 630.09 630.09T
10 630.10 630.10T
11 630.11 630.11T
12 630.12 630.12T
13 630.13 630.13T
14 630.14 630.14T
15 630.15 630.15T
16 630.16 630.16T
17 630.17 630.17T
18 630.18 630.18T
19 630.19 630.19T
20 630.20 630.20T
