NON-LOCKING PLATING SYSTEM

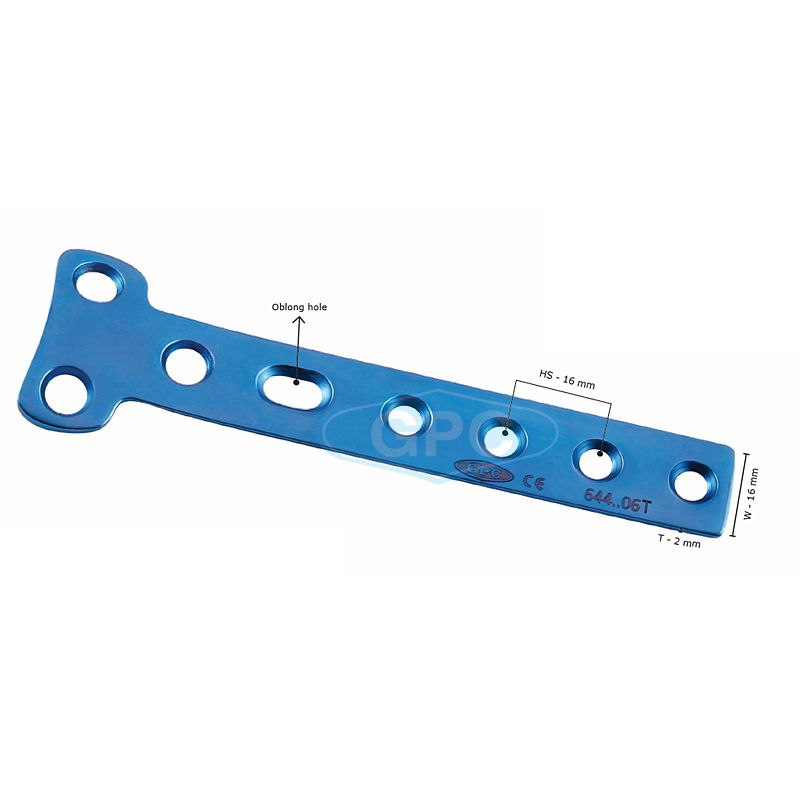

T Plate for 4.5mm

Specifications:

Features

  • Low profile plate
  • Elongated hole for loose temporary fixation with cortex screws for optimal plate placement
  • Can be applied as neutralization, buttress or tension band plate
  • Head holes suitable for 6.5 mm cancellous screws and shaft holes fixed with 4.5 mm cortex screws
  • Available in both Titanium and Stainless Steel

Profile

  • Thickness (T): 2 mm
  • Width (W) : 16 mm
  • Hole Spacing (HS) : 16 mm

No. of Holes CODE
S.S. Titanium
3 644.03 644.03T
4 644.04 644.04T
5 644.05 644.05T
6 644.06 644.06T
7 644.07 644.07T
8 644.08 644.08T
9 644.09 644.09T
10 644.10 644.10T
11 644.11 644.11T
12 644.12 644.12
14 644.14 644.14
