NON-LOCKING PLATING SYSTEM

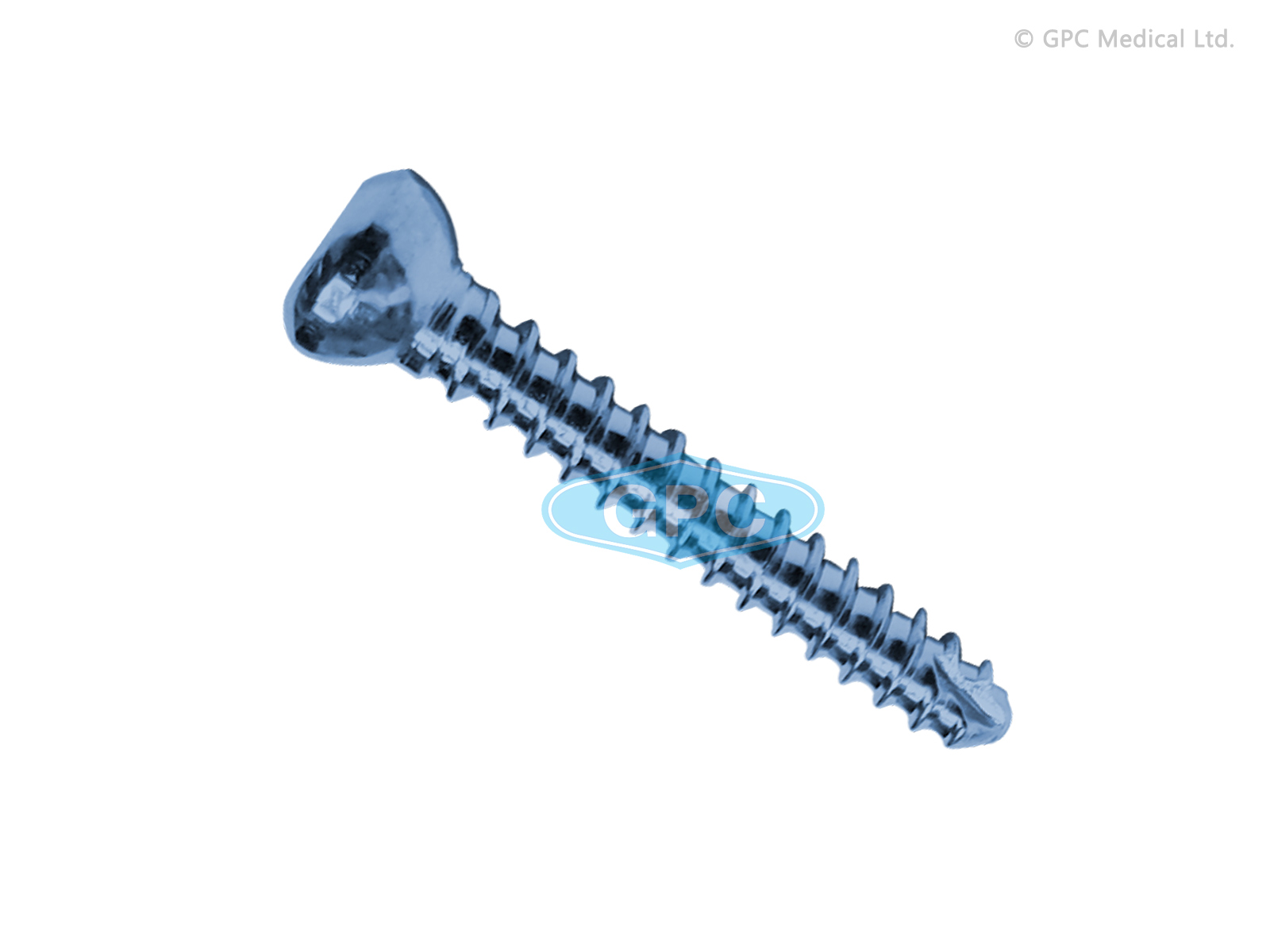

Self-Tapping Cortex Screw 2.7 mm, Hexagonal Socket

Specifications:

Thread dia. 2.7 mm
Head dia. 5.0 mm
Core dia. 1.9 mm
Lengths 6-40mm (2 mm Diff)
Drill bit used 2.0 mm


  CODE LENGTH
 (mm)
  S.S. Titanium
  709.06   709.06T   6mm
  709.07   709.07T   7mm
  709.08   709.08T   8mm
  709.09   709.09T   9mm
  709.10   709.10T   10mm
  709.11   709.11T   11mm
  709.12   709.12T   12mm
  709.14   709.14T   14mm
  709.16   709.16T   16mm
  709.18   709.18T   18mm
  709.20   709.20T   20mm
  709.22   709.22T   22mm
  709.24   709.24T   24mm
  709.26   709.26T   26mm
  709.28   709.28T   28mm
  709.30   709.30T   30mm
  709.32   709.32T   32mm
  709.34   709.34T   34mm
  709.36   709.36T   36mm
  709.38   709.38T   38mm
709.40   709.40T   40mm
