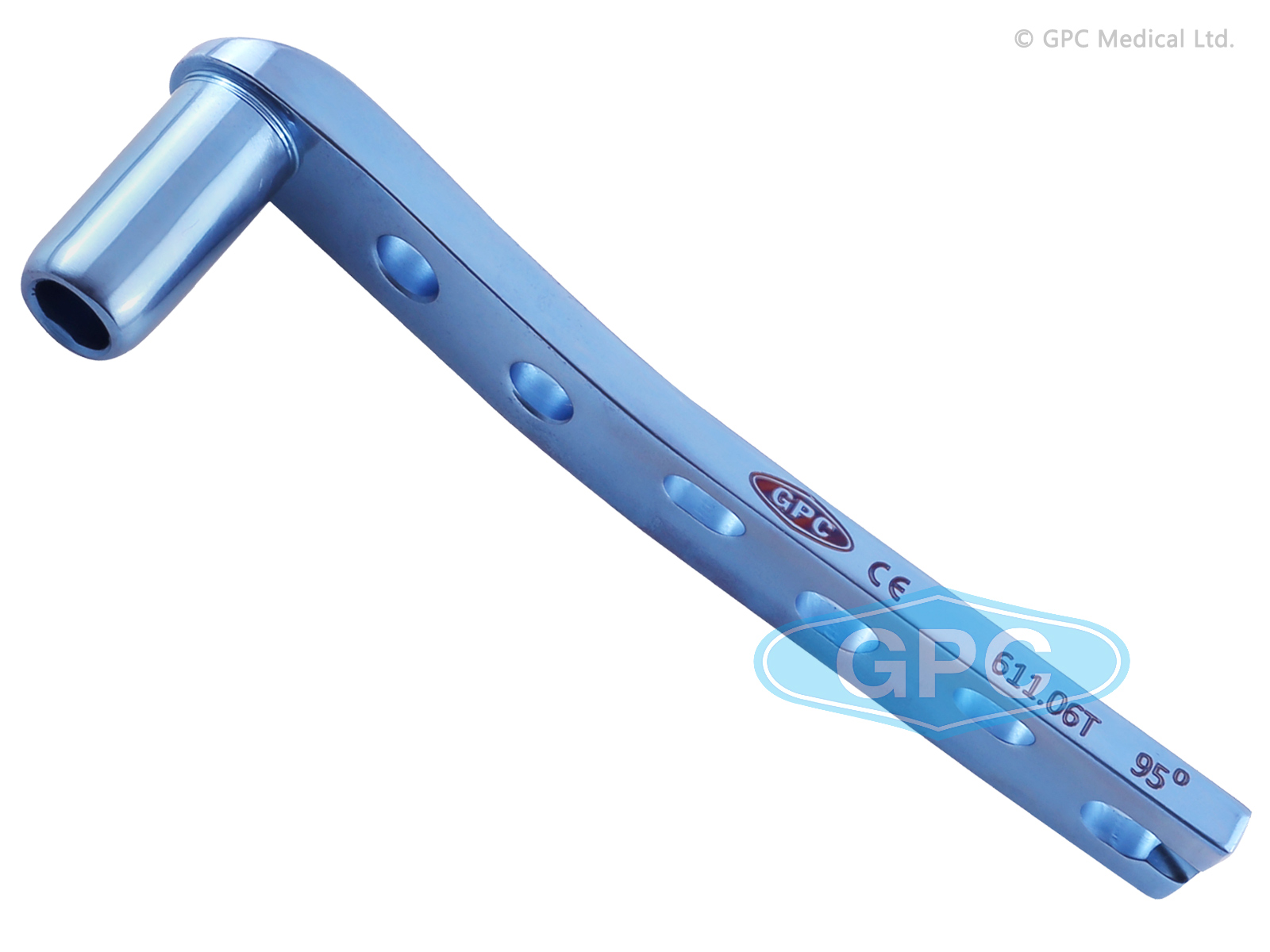

D.C.S. Barrel Plates with dynamic compression holes and slot for tension device.



  • Permits stable fixation in the proximal fragment
  • 95° barrel angle allowing it to enter the femur more proximally allowing insertion of independent screws into the calcar
  • Two round holes next to the barrel accept 6.5 mm cancellous screws which enhance stability in distal condylar and subtrochanteric fractures
  • Minimal soft tissue irritation due to low profile design which reduces risk of intertrochanteric band irritation in distal femur and trochanteric bursitis in subtrochanteric fractures
  • Dynamic compression holes allow compression of fracture fragments
  • Barrel length 25 mm, used with DHS lag screw Dia. 12.5 mm and compression screw of length 36 mm
  • Angle between neck and shaft is 95°
  • Shaft compression holes fixed with cortex screw Dia. 4.5 mm
  • Available in both Titanium and Stainless Steel


  • Thickness (T): 5.4 mm
  • Width (W): 16 mm
  • Hole Spacing (HS): 16 mm
No. of Holes CODE
S.S. Titanium
6 611.06 611.06T
7 611.07 611.07T
8 611.08 611.08T
9 611.09 611.09T
10 611.10 611.10T
12 611.12 611.12T
14 611.14 611.14T
16 611.16 611.16T
