Specifications:
Features
- Deep notches allow accurate contouring of the plate in all planes
- Oval holes allow dynamic compression of fracture fragments
- Special instruments are available for contouring these plates
- Can be contoured for fixation of various bones
- Fixed with 3.5 mm cortex and 4.0 mm cancellous screws
- Available in both Titanium and Stainless Steel

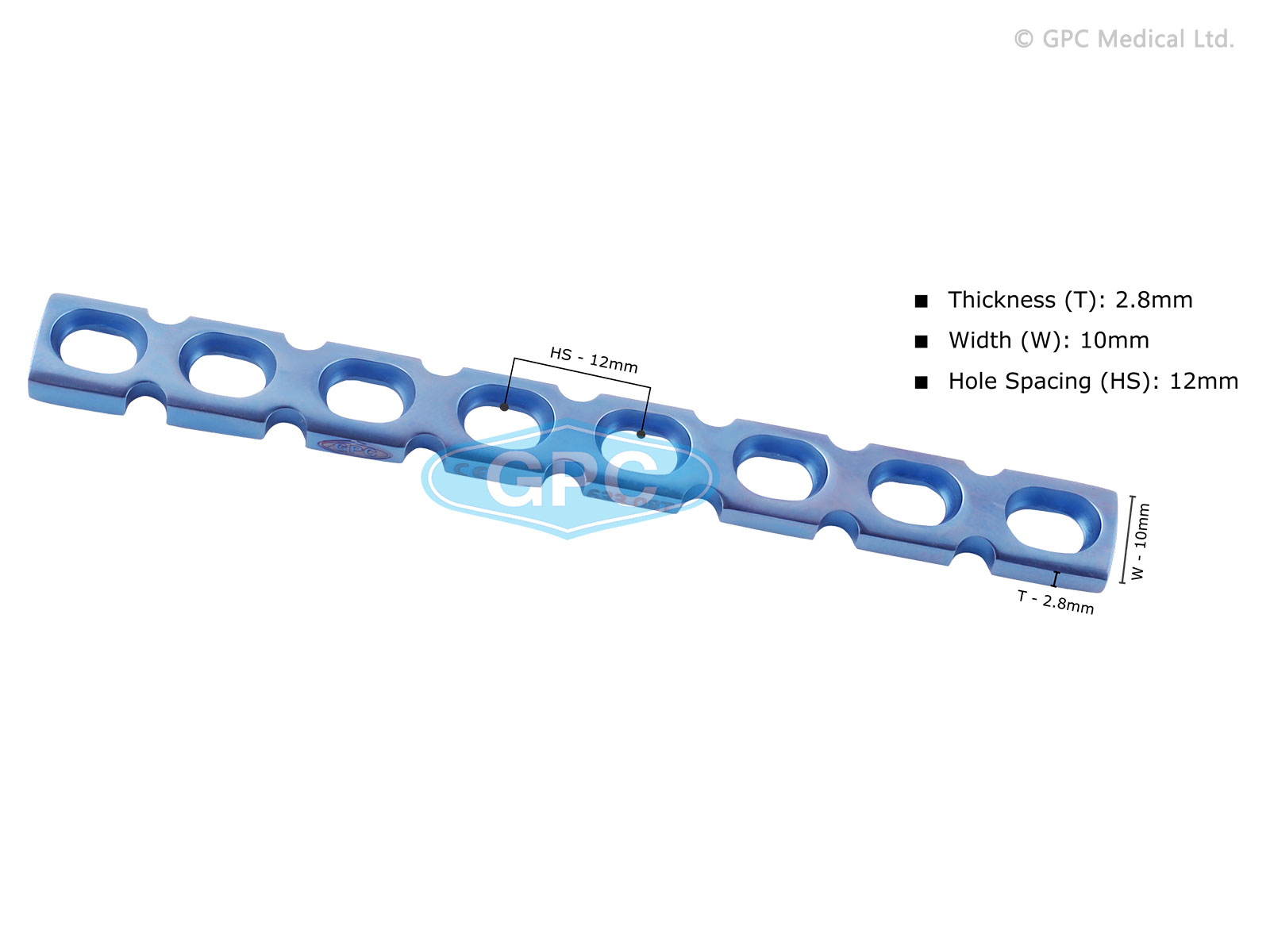

Profile
- Thickness (T): 2.8 mm
- Width (W): 10 mm
- Hole Spacing (HS): 12 mm
|
No. of Holes |
CODE | |
| S.S. | Titanium | |
| 5 | 633.05 | 633.05T |
| 6 | 633.06 | 633.06T |
| 7 | 633.07 | 633.07T |
| 8 | 633.08 | 633.08T |
| 9 | 633.09 | 633.09T |
| 10 | 633.10 | 633.10T |
| 11 | 633.11 | 633.11T |
| 12 | 633.12 | 633.12T |
| 13 | 633.13 | 633.13T |
| 14 | 633.14 | 633.14T |
| 15 | 633.15 | 633.15T |
| 16 | 633.16 | 633.16T |
| 17 | 633.17 | 633.17T |
| 18 | 633.18 | 633.18T |
| 19 | 633.19 | 633.19T |
| 20 | 633.20 | 633.20T |
| 21 | 633.21 | 633.21T |
| 22 | 633.22 | 633.22T |
