NON-LOCKING PLATING SYSTEM

Limited Contact Dynamic Compression Plate (LC-DCP), 3.5 mm

Specifications:

Features

  • Reduces plate footprint to preserve the blood supply of the periosteum
  • Overcomes problems with DCP plate
  • Allows more inclination of screw in longitudinal plane and transverse plane
  • Oval holes allow compression of fracture fragments
  • More contourable
  • Reduced plate fatigue at hole
  • Less chances of fracture after implant removal
  • Fixed with 3.5 mm cortex and 4.0 mm cancellous screws
  • Available in both Titanium and Stainless Steel

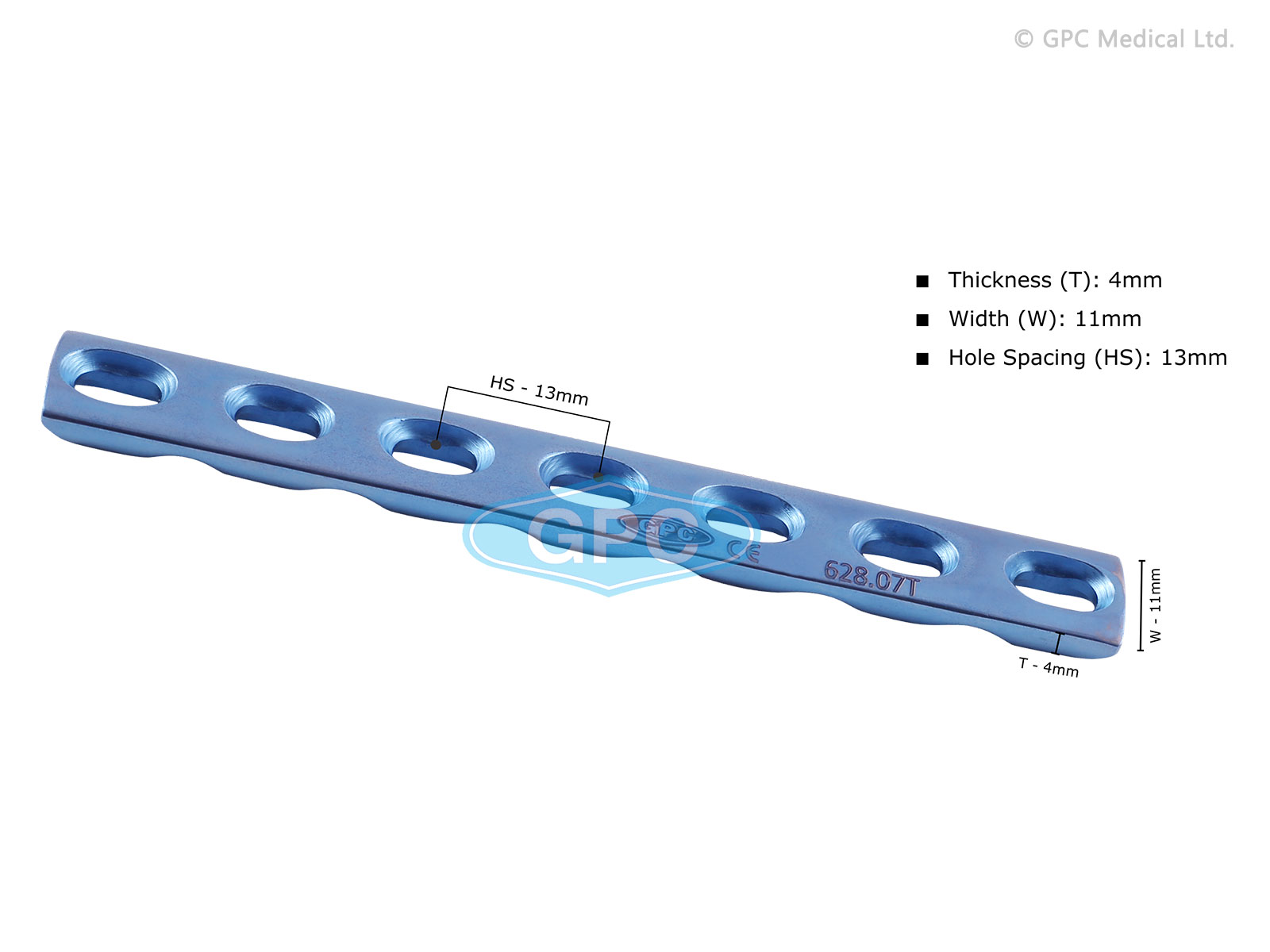

Profile

  • Thickness (T): 4 mm
  • Width (W): 11 mm
  • Hole Spacing (HS): 13 mm

No. of Holes CODE
S.S. Titanium
3 628.03 628.03T
4 628.04 628.04T
5 628.05 628.05T
6 628.06 628.06T
7 628.07 628.07T
8 628.08 628.08T
9 628.09 628.09T
10 628.10 628.10T
11 628.11 628.11T
12 628.12 628.12T
13 628.13 628.13T
14 628.14 628.14T
