NON-LOCKING PLATING SYSTEM

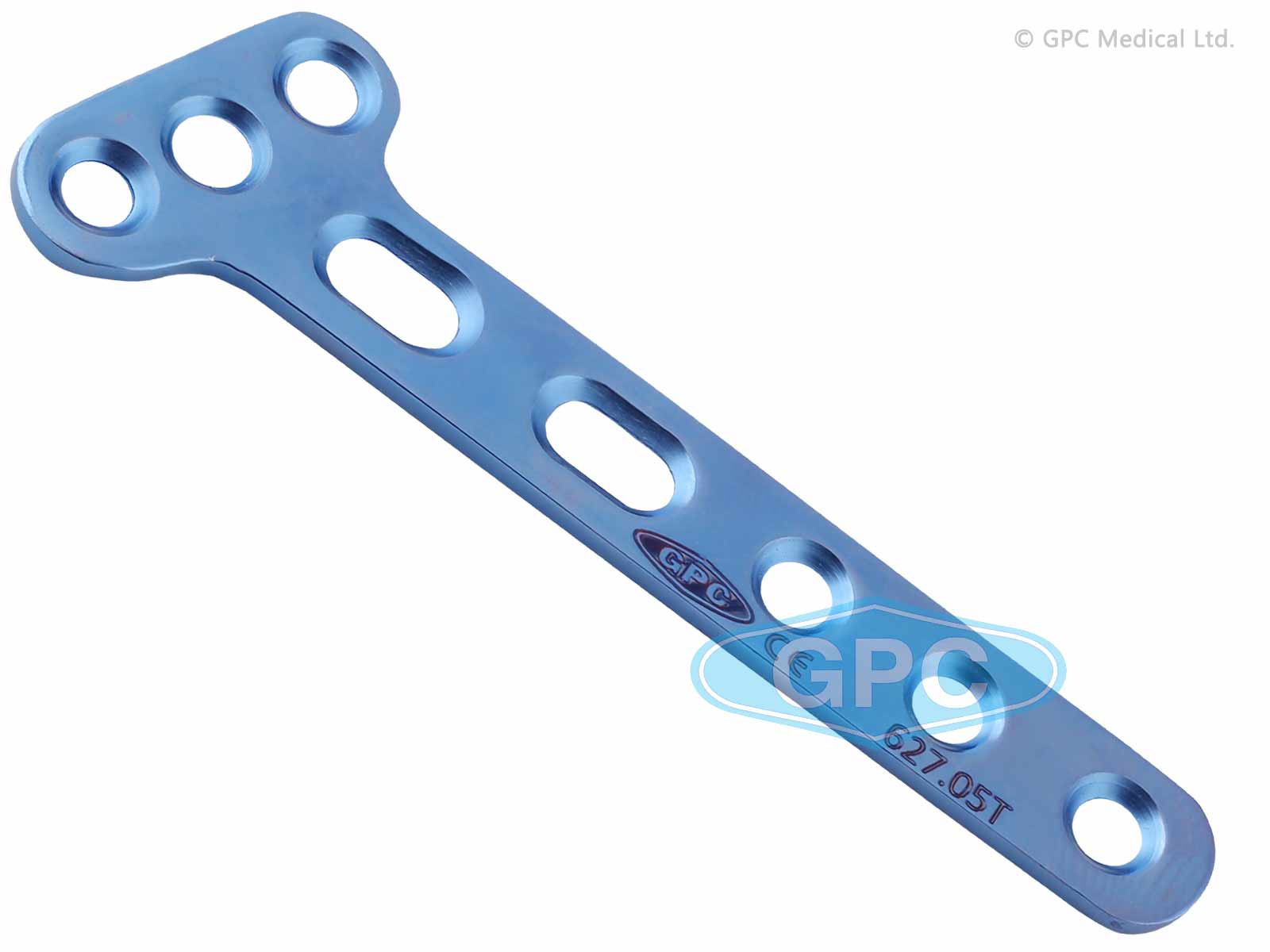

T-Plate Oblique Angled, 3.5 mm

Specifications:

Features

  • Oblique plate for holding the styloid fragment
  • Oblique part has 120  angle
  • Low profile plate prevents soft tissue irritation
  • Oblong hole in the shaft allows temporary stabilisation and accurate plate placement
  • Fixed with 3.5 mm cortex and 4.0 mm cancellous screws
  • Available in both Titanium and Stainless Steel

Profile

Thickness                          1.5mm
Width                                 10mm
Hole Spacing                      14mm


No. of Holes CODE -Left CODE -Right
S.S. Titanium S.S. Titanium
3 627.03L 627.03TL 627.03R 627.03TR
4 627.04L 627.04TL 627.04R 627.04TR
5 627.05L 627.05TL 627.05R 627.05TR
