NON-LOCKING PLATING SYSTEM

One Third Tubular Plate, 3.5 mm

Specifications:

Features

  • Useful in areas with minimal soft tissue covering
  • Low profile construct
  • Oval holes allow eccentric screw placement to produce fracture compression
  • Can be contoured to match the anatomy of the bone
  • Fixed with 3.5 mm cortex and 4.0 mm cancellous screws
  • Available in both Titanium and Stainless Steel

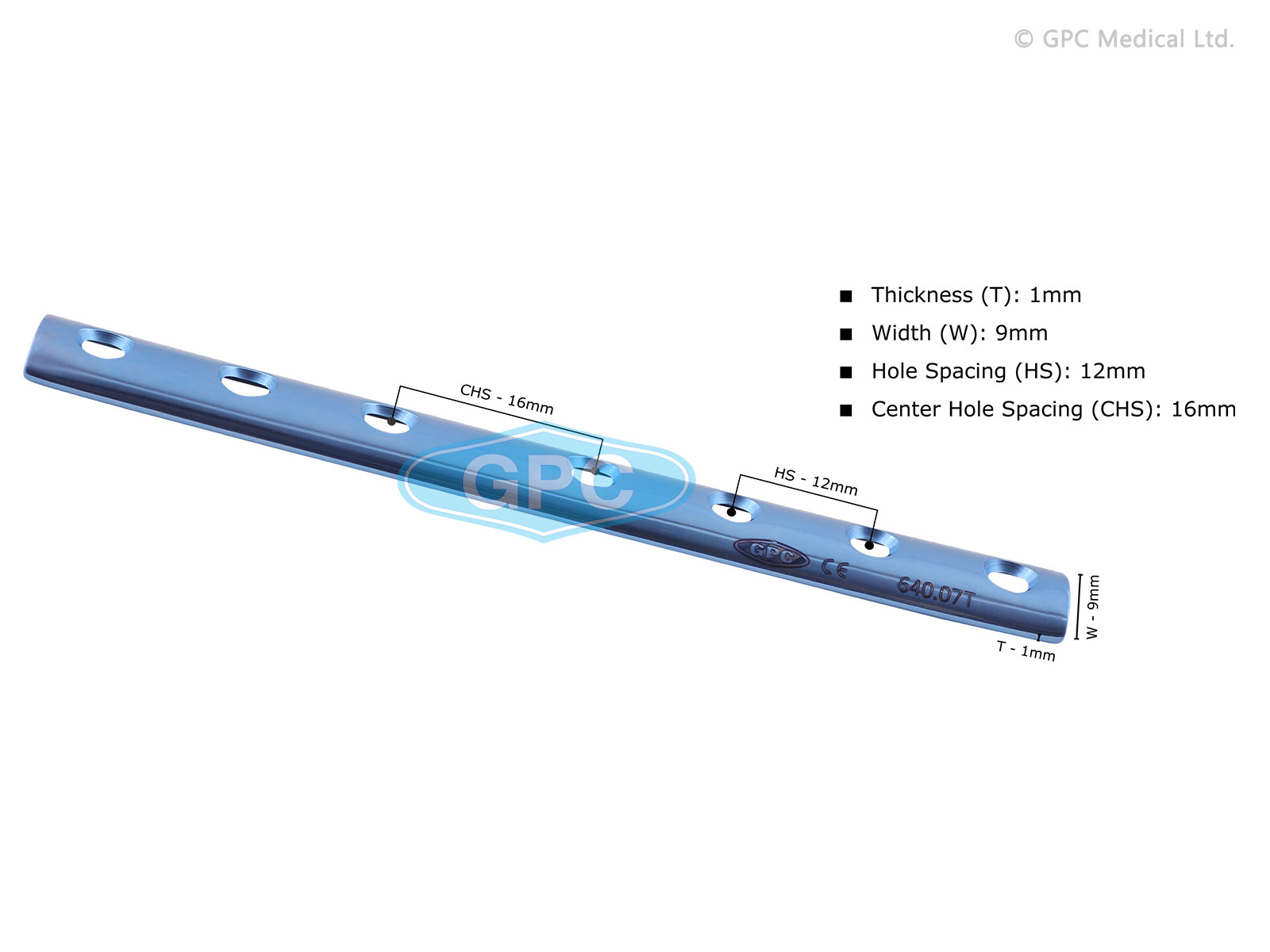

Profile

  • Thickness (T): 1 mm
  • Width (W): 9 mm
  • Hole Spacing (HS): 12 mm
  • Center Hole Spacing (CHS): 16 mm


No. of Holes CODE
S.S. Titanium
2 639.02 639.02T
3 639.03 639.03T
4 639.04 639.04T
5 639.05 639.05T
6 639.06 639.06T
7 639.07 639.07T
8 639.08 639.08T
9 639.09 639.09T
10 639.10 639.10T
11 639.11 639.11T
12 639.12 639.12T
