Specifications:
Features

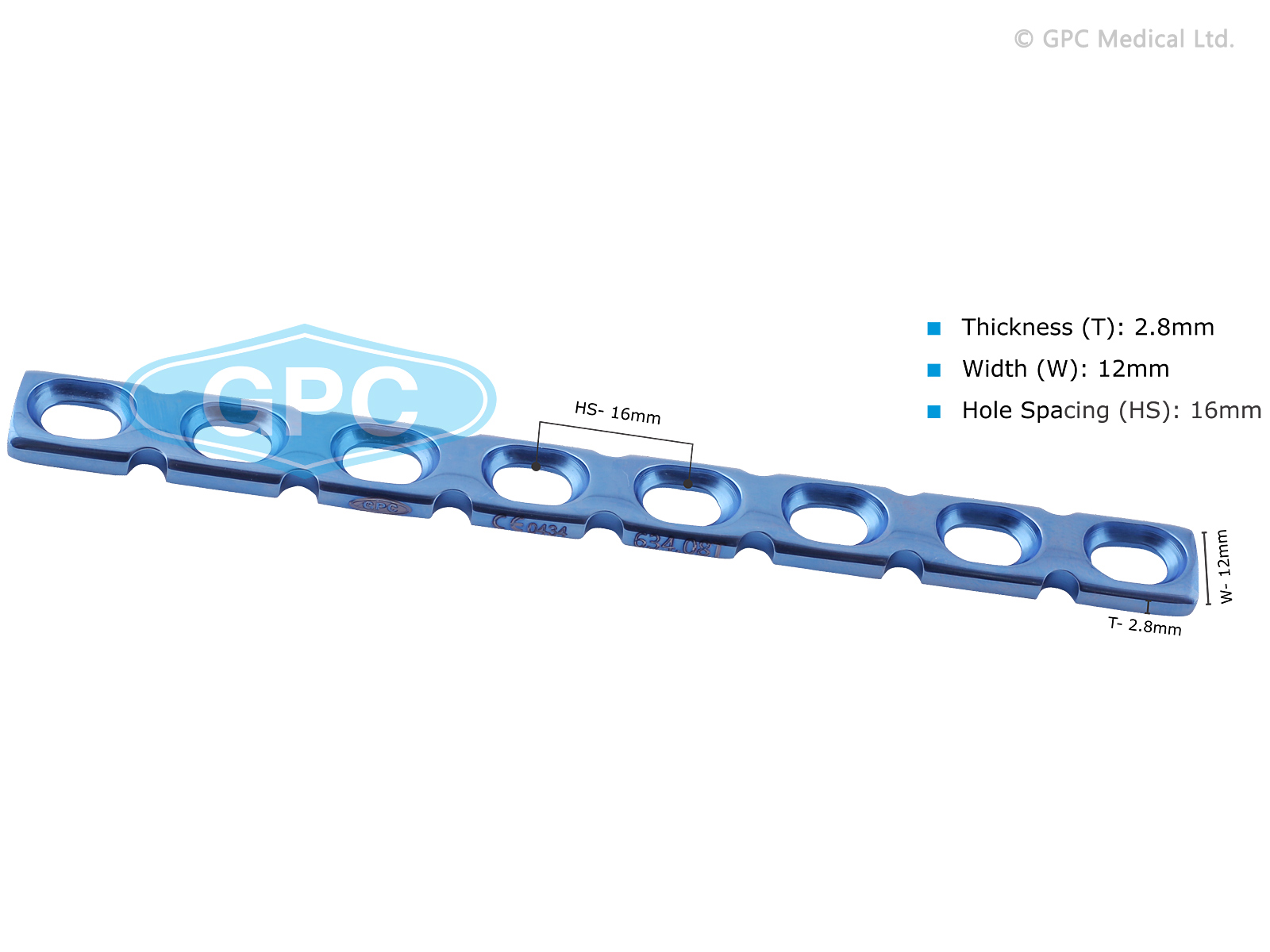

- Have deep scallop like notches on the edge of the plate
- Notches situated between the holes allow accurate contouring of the plate in all planes
- Used in fractures with complex three dimensional geometry
- Can be contoured with special instruments to match the bone anatomy
- Used with 4.5 mm cortex screws
- Available in both Titanium and Stainless Steel
No. of Holes | CODE | |
S.S. | Titanium | |
5 | 634.05 | 634.05T |
6 | 634.06 | 634.06T |
7 | 634.07 | 634.07T |
8 | 634.08 | 634.08T |
9 | 634.09 | 634.09T |
10 | 634.10 | 634.10T |
12 | 634.12 | 634.12T |
14 | 634.14 | 634.14T |
16 | 634.16 | 634.16T |
18 | 634.18 | 634.18T |
20 | 634.20 | 634.20T |
22 | 634.22 | 634.22T |
