NON-LOCKING PLATING SYSTEM

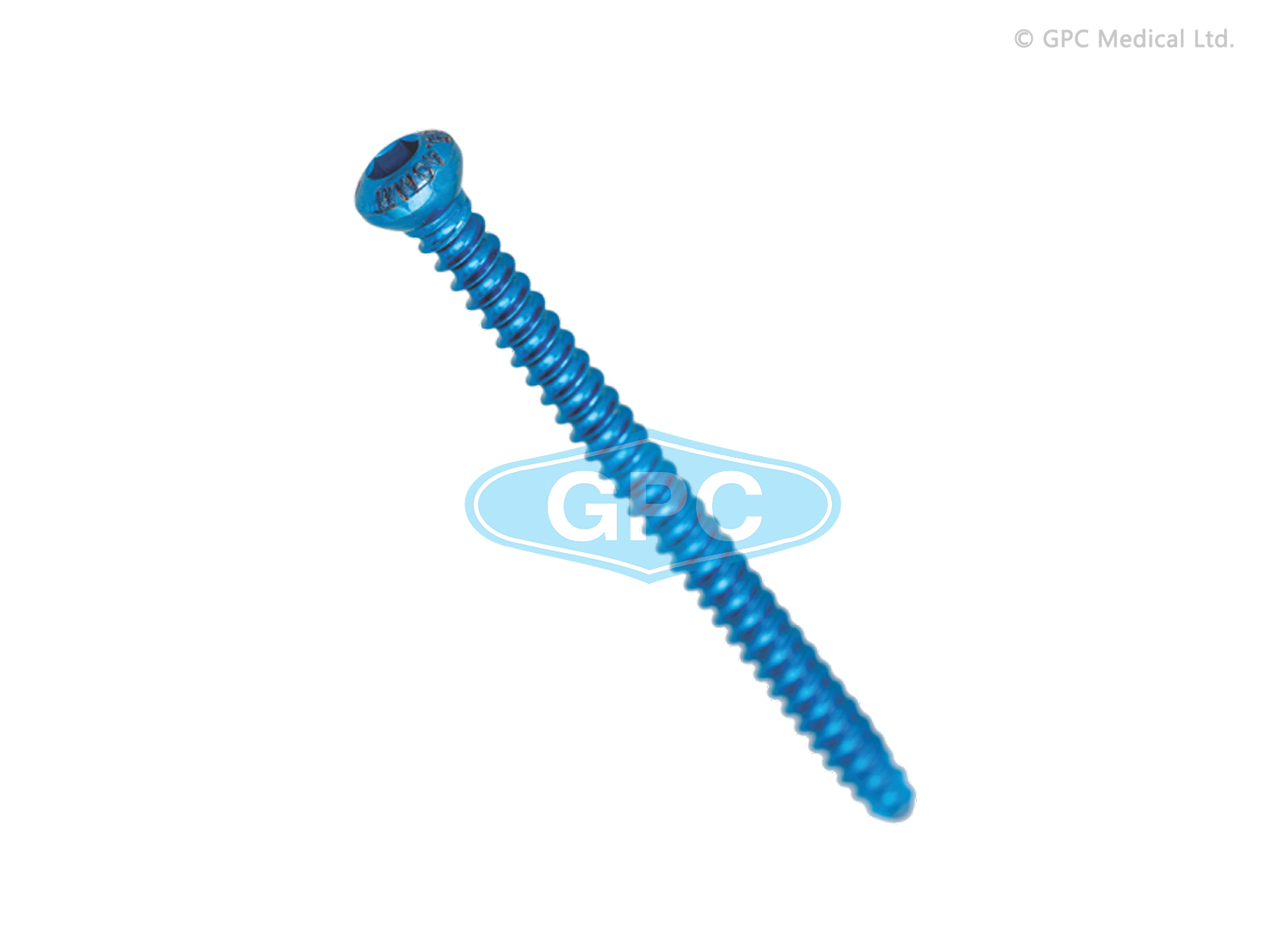

Cortex Screw 2.7mm

Specifications:

Cortex Screw 2.7mm, Hexagonal Socket

  Thread Dia.

  2.7mm

  Drill Bit for Threaded Hole

  2.0mm

  Drill Bit for Guiding Hole

  2.7mm

  Core Dia.

  1.9mm

  Hexagonal Socket Width

  2.5mm

  Head Dia.

  5.0mm



  CODE

LENGTH
 (mm)

  S.S.

Titanium

  714.06

  714.06T

  6mm

  714.07

  714.07T

  7mm

  714.08

  714.08T

  8mm

  714.09

  714.09T

  9mm

  714.10

  714.10T

  10mm

  714.11

  714.11T

  11mm

  714.12

  714.12T

  12mm

  714.14

  714.14T

  14mm

  714.16

  714.16T

  16mm

  714.18

  714.18T

  18mm

  714.20

  714.20T

  20mm

  714.22

  714.22T

  22mm

  714.24

  714.24T

  24mm

  714.26

  714.26T

  26mm

  714.28

  714.28T

  28mm

  714.30

  714.30T

  30mm

  714.32

  714.32T

  32mm

  714.34

  714.34T

  34mm

  714.36

  714.36T

  36mm

  714.38

  714.38T

  38mm

  714.40

  714.40T

  40mm
