NON-LOCKING PLATING SYSTEM

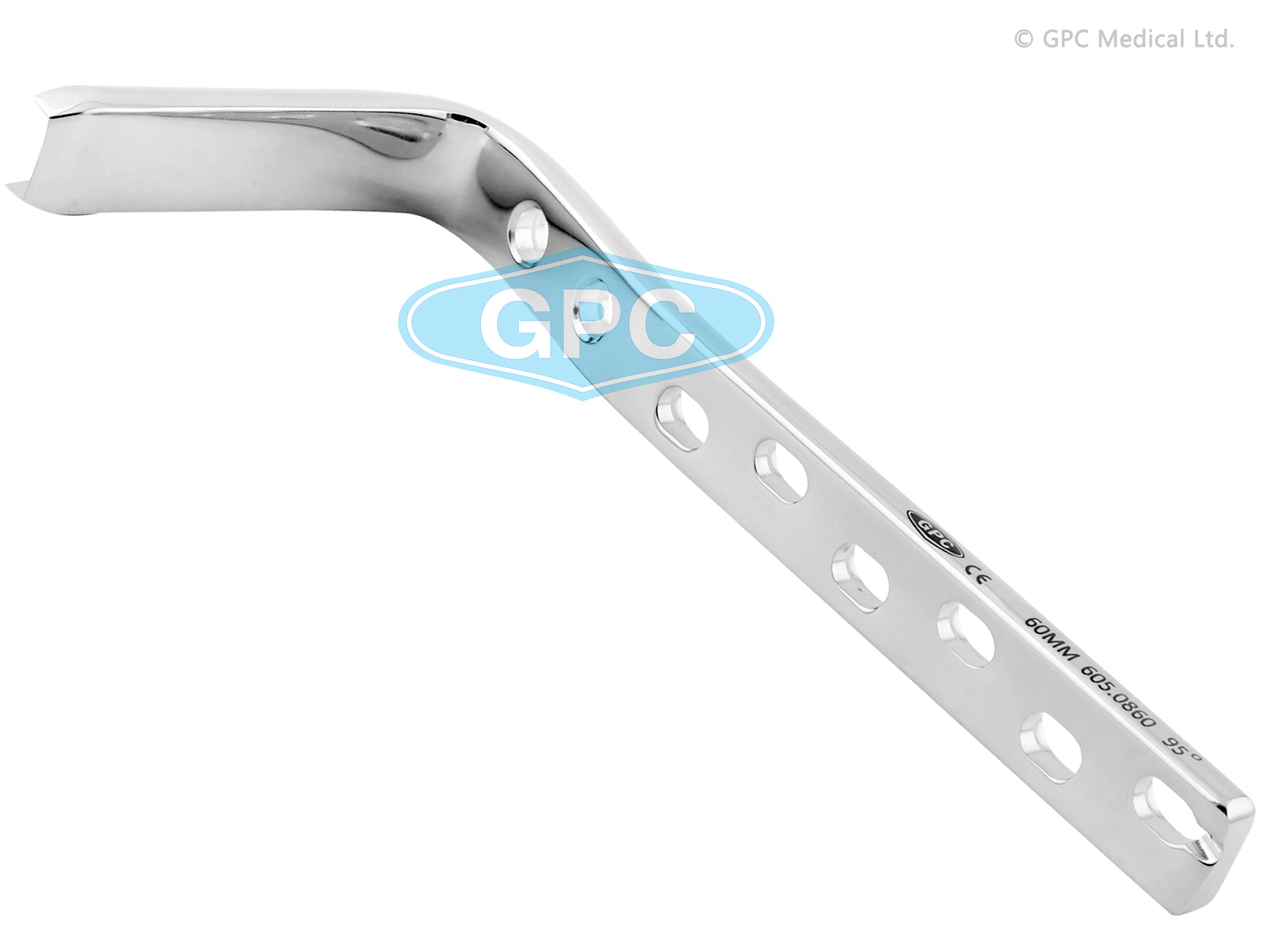

Condylar Blade Plate 4.5 mm, 95°

Specifications:

Features

  • U profile blade
  • 95° angle between blade and shaft of the plate
  • Due to the fixed-angle shape, careful planning, and precise preparation of the channel for the blade provides successful application.
  • Two round holes near the blade accept 6.5 mm cancellous screws
  • Shaft compression holes are fixed with cortex screws Dia. 4.5 mm
  • Available in both Titanium and Stainless Steel

Shaft Profile

Thickness              5.6mm
Width                    16mm
Hole Spacing         16mm


Length
(mm)
Code - Stainless Steel
5 Holes 7 Holes 9 Holes 12 Holes 14 Holes 16 Holes 18 Holes
50 605.05.50 605.07.50 605.09.50 605.12.50 605.14.50 605.16.50 605.18.50
60 605.05.60 605.07.60 605.09.60 605.12.60 605.14.60 605.16.60 605.18.60
70 605.05.70 605.07.70 605.09.70 605.12.70 605.14.70 605.16.70 605.18.70
80 605.05.80 605.07.80 605.09.80 605.12.80 605.14.80 605.16.80 605.18.80
